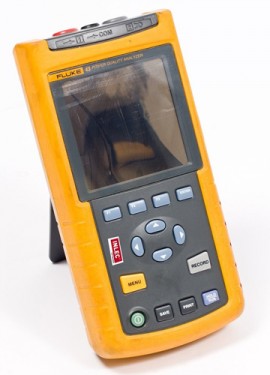

Fluke 43B/003 Power Quality Analyzer

Model: 43B/003 | UPC: 095969106245

Fluke 43B/003 Power Quality Analyzer-

Fluke 43B/003 Power Quality Analyzer

Model: 43B/003

Perform the measurements you need to maintain power systems and troubleshoot power problems and diagnose equipment failures. Records two selectable parameters for up to 16 days.

Perform the measurements you need to maintain power systems and troubleshoot power problems and diagnose equipment failures. Records two selectable parameters for up to 16 days.

This product has been discontinued. To view the closest replacement for this product, click here to go to our affiliate website.


Fluke 43B/003 Offers

Features

  • Inputs: 1 voltage and 1 current
  • Built-in real-time scope and digital Multimeter
  • Built-in recorder
  • Sags and swells
  • Transient display
  • Inrush current
  • 20 memory locations (screens/data)
  • 600V Cat III safety rating

Specifications

  • Power: Installed Battery; Rechargeable NMH pack (4.8v dc)
  • Operating Time: 4 hours
  • Charging Time: 7 hours
  • Dimensions (H x W x D): 232 x 115 x 50 mm (9.1 x 4.5 x 2 inches)
  • Weight: 1.1 kg (2.5 lbs.) incl. battery pack

Fluke 43B/003 Specifications

Input Characteristics

Input impedance 1 MΩ, 20 pF
Voltage rating 600V rms, CAT III

V/A/Hz Display

True-rms voltage (ac + dc)
Ranges: 5.000 V, 50.00 V, 500.0 V, 1250 V*
Accuracy ±(1% + 10 counts)
True-rms current (ac + dc)
Ranges: 50.00 A, 500.0 A, 5.000 kA, 50.00 kA, 1250 kA
Accuracy ±(1% + 10 counts)
Frequency
Ranges: 10.0 to 15.0 kHz
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
CF Crest factor
Ranges 1.0 - 10.0
Accuracy ±(5% + 1 count)

Power Display

Watts, VA, VAR
1-phase and 3-phase,3 conductor balanced loads
Ranges 250 W - 1.56 GW
Accuracy ±(4% + 4 counts) Fundamental Power
Accuracy ± (2 % + 6 counts) Total Power
PF Power Factor
Range 0 - 1.0
Accuracy ±0.04
DPF Displacement Power Factor, Cos .F
Range 0.25 - 0.9
Accuracy ±0.04
Range 0.90 - 1.0
Accuracy ±0.03
H2 Frequency Fundamental
Ranges 40.0 to 70.0 Hz
Accuracy ± ([% of reading] + [counts]): 0.5% + 2

Harmonics Display

Voltage, Current, Frequency
Ranges: Fundamental to 51st harmonic
Accuracy:
Fundamental VA ±(3% + 2 counts) W ±(5% + 2 counts)
2 to 31st harmonic VA ±(5% +3 counts) W ±(10% +10 counts)
32 to 51st harmonic VA ±(15% +5 counts) W ±(30% +5 counts)
Frequency Fundamental
Ranges 40 Hz to 70 Hz
Accuracy ±0.25 Hz
Phase
Range: V, A (between Fundamental & Harmonics)
Accuracy: ±3° to ±15°
Range W (between Voltage Fundamental & Current Harmonics)
Accuracy ±5° to ±15°
K-factor (Current and Power)
Range: 1.0 to 30.0
Accuracy ±10%
THD Total Harmonic Distortion
Range 0.00 - 99.99
Accuracy: ±(3% + 8 counts)

Sags and Swells

Recording times: 4 min to 16 days (selectable)
Vrms Actual, Vrms max, min(AC + DC)
Ranges: 5.000V, 50.00V, 500.0V, 1250V*
Accuracy Readings ±(2% +10 counts); Cursor readings ± (2% + 12 counts)
Arms Actual, Arms max, min (AC + DC)
Ranges: 50.00A, 500.0A, 5.000 kA, 50.00 kA
Accuracy: ±(2% +10 counts)

Transient Capture

Minimum pulse width: 40 ns
Useful bandwidth input 1 DC to 1 MHz
Number of transients 40
Voltage threshold settings: 20%, 50%, 100%, 200% above or below reference
Reference signal After START, the Vrms and frequency of the signal are measured. From these data a pure sinewave is calculated as reference for threshold setting.
Vpeak min, Vpeak max at cursor 10 V, 25 V, 50 V, 125 V, 250 V, 500 V, 1250 V Accuracy: ±5% of full scale

R, C, Diode, Continuity

Resistance ranges: 500.0 Ω, 5.000 kΩ, 50.00 kΩ, 500.0 kΩ, 5.000 MΩ, 30.00 MΩ
Resistance accuracy: ±(0.6% + 5 counts)
Capacitance ranges 50.00 nF, 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF
Capacitance accuracy: ±(2% + 10 counts)
Diode Ranges 0 to 3.000 V
Diode voltage:
Accuracy ±(2% + 5 counts)
Continuity: Beeper on at < 30 Ω ± 5 Ω
Max current: 0.5 mA
Temperature °C or °F

Inrush Current

Inrush times 1 s, 5 s, 10 s, 50 s, 100 s, 5 min
Current ranges: 1 A, 5 A, 10 A, 50 A, 100 A, 500 A, 1000 A
Cursor readings A peak max at cursor 1 and cursor 2
Accuracy ±5% of full scale
Time between cursors 4 to 235 pixels (1 pixel = inrush time/250) Accuracy: ±(0.2% + 2 pixels)

Temperature (with accessory)

Range -100 °C - 400 °C
Accuracy ±(0.5% + 5 counts)

Scope Display

Measurements dc, ac, ac+dc, peak, peak-peak, frequency, duty cycle, phase, pulse width, crest factor
Time ranges: 20 ns/div to 60 s/div
Max sampling rate 25 MS/s
Bandwidth
Voltage channel [1] 20 MHz at inputs, 1 MHz with TL24 Leads
Current channel [2] DC to 15 kHz at inputs, 10 kHz with i400s Current Clamp
Coupling: AC, DC (10 Hz - 3 dB)
Vertical sensitivity 5 mV/div to 500V/div
Vertical resolution: 8 bit (256 levels)
Record length: 512 samples per channel
Base ranges 60 S/div to 20 nS/div ± (0.4% + 1 pixel)
Timebase modes Normal, roll, single
Pre-trigger: Up to 10 divisions
Trigger Source Input 1 or Input 2 or automatic selection
Trigger Mode Automatic Connect-and-View™, Free Run, and Single Shot
Connect-and-View™ Advanced automatic triggering that recognizes signal patterns
Automatically adjusts triggering, timebase and amplitude and displays stable pictures

Memories

20 (screens, settings, data)

Recording

Recording times 4 min to 16 days (selectable)
Parameters Choose one or two parameters from one of the groups below
Volts/Ampères/Hertz
Power Watts, VA, VAR, PF, DPF, Frequency
Harmonics, THD, Volts (Fund. & Harmonic), Ampères (F&H) Watts(F&H)
Frequency (H), %(H) of total, Phase(H), KF
Temperature
Resistance Resistance, Diode, Continuity, Capacitance
Scope DC Voltage, DC Current, AC Voltage, AC Current, Frequency,
Pulse Width + or -, Phase, Duty cycle + or -, Peak max, Peak min, Peak min-max, Crest Factor

Note

*Rated EN 61010-1 600 V CAT III CSA

Environmental Specifications

Operating Temperature

0°C to +50°C

Safety Specifications

Electrical Safety

EN 61010-1 CAT III, 600V. CSA listed

What's included with the Fluke 43B/003

  • Fluke 43B/003 Power Quality Analyzer
  • FlukeView Power Quality Analyzer Software (SW43W) offers you simple mouse-controlled tools to work with your Power Quality Analyzer.

    The FlukeView software communicates with your Power Quality Analyzer via the optically isolated OC4USB adapter/cable connected to the USB of the PC. The OC4USB driver creates a virtual COM port. FlukeView will handle the USB port as a COM port.

    • Capture measurement screens for professional-looking reports
    • Log readings to your computer disk drive
    • Works with Windows® word processing, spreadsheet and analysis software
    • Windows® 3.1, Windows® 95 and Windows® NT compatible

    FlukeView software enables you to read the following types of data from the Power Quality Analyzer into a window on the PC screen:

    • Display Instrument Screens
    • Display Waveforms
    • Display Trend
    • Display Spectrum/Harmonics
    • Display Limits
    • Display Setup
    • Start Logging of Readings
    • Multiple Transfers of Screens/Windows

    Note:
    The optional RS-232 adapter/cable PM9080 allows you to communicate via a COM port of your PC.
