Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A

Model: CT-SCL-1000-B

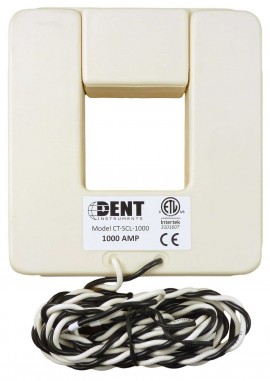

Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A-

Downloads: datasheet

Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A

Model: CT-SCL-1000-B

Provides a linear output voltage that is proportional to the input current that is safe and easy to install over existing electrical power lines without disconnection or interruption. Features a window size of 2.0” and offers a 1000A amp rating.

Provides a linear output voltage that is proportional to the input current that is safe and easy to install over existing electrical power lines without disconnection or interruption. Features a window size of 2.0” and offers a 1000A amp rating.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Dent CT-SCL-1000-U Large Split Core Current Transformer, 1000A-

Dent CT-SCL-1000-U Large Split Core Current Transformer, 1000A

Model: CT-SCL-1000-U

Provides a linear output voltage that is proportional to the input current that is safe and easy to install over existing electrical power lines without disconnection or interruption. Features a window size of 2.0" and offers a 1000A amp rating.

Learn More

Dent CT-SCL-1000-B Offers

Features

  • Internal precision burden resistor across secondary
  • 8' twisted pair leads, terminated in ferrule for easy connection to all Dent meters
  • Large window size of 2.0" (51mm)
  • Output is 333mV at rated current
  • Internal precision burden resistor across secondary
  • Typical accuracy is ±1% (measured from 10% to 130%)
  • Core blades are shrouded for protection during installation
  • Core is interleaved at joints for accuracy
  • cETLus Listed

Applications

  • Building automation
  • Tenant submetering
  • Performance verification
  • Energy management
  • New technology assessment

Dent CT-SCL-1000-B Specifications

Key Specifications
Window Size 2.0" (5.1 cm)
Current Range 20 to 1300 A AC
Output 333 mV at rated current
Ratio Error <1% at rated current (typical)
Phase Error <2° at rated current (typical)
Electrical
Output 333 mV at rated current
Wire Polarity White = Hi, positive (+)
Black = Low, negative (-)
Frequency Range 50 to 400 Hz
Mechanical
Case Material Epoxy encapsulated housing
Leads 8' (2.7 m), twisted pair, 20 AWG
Operating Temperature -4 to 131°F (-20 to 55°C)
Safety
Working Voltage 600 VAC, Category III
Dielectric Strength 5000 VAC around case
600V rated leads
Safety Standards Conforms to: UL STD 61010-1 EN 60044-1
Certified to: CAN/CSA STD C22.2 No. 61010-1
Click here for complete specifications on the Dent CT-SCL-1000-B

What's included with the Dent CT-SCL-1000-B

  • Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A
datasheet for the Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A

Ask a question about Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A

Customer Reviews for the Dent CT-SCL-1000-B

Dent CT-SCL-1000-B Offers

Features

  • Internal precision burden resistor across secondary
  • 8' twisted pair leads, terminated in ferrule for easy connection to all Dent meters
  • Large window size of 2.0" (51mm)
  • Output is 333mV at rated current
  • Internal precision burden resistor across secondary
  • Typical accuracy is ±1% (measured from 10% to 130%)
  • Core blades are shrouded for protection during installation
  • Core is interleaved at joints for accuracy
  • cETLus Listed

Applications

  • Building automation
  • Tenant submetering
  • Performance verification
  • Energy management
  • New technology assessment
Show More...

Dent CT-SCL-1000-B Specifications

Key Specifications
Window Size 2.0" (5.1 cm)
Current Range 20 to 1300 A AC
Output 333 mV at rated current
Ratio Error <1% at rated current (typical)
Phase Error <2° at rated current (typical)
Electrical
Output 333 mV at rated current
Wire Polarity White = Hi, positive (+)
Black = Low, negative (-)
Frequency Range 50 to 400 Hz
Mechanical
Case Material Epoxy encapsulated housing
Leads 8' (2.7 m), twisted pair, 20 AWG
Operating Temperature -4 to 131°F (-20 to 55°C)
Safety
Working Voltage 600 VAC, Category III
Dielectric Strength 5000 VAC around case
600V rated leads
Safety Standards Conforms to: UL STD 61010-1 EN 60044-1
Certified to: CAN/CSA STD C22.2 No. 61010-1
Click here for complete specifications on the Dent CT-SCL-1000-B

What's included with the Dent CT-SCL-1000-B

  • Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A
datasheet for the Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A

Ask a question about Dent CT-SCL-1000-B Large Split Core Current Transformer with Banana Plugs, 1000A

Customer Reviews for the Dent CT-SCL-1000-B
