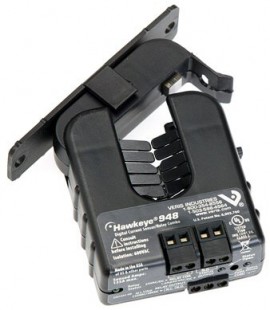

The Hawkeye Relay Combination Series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two.
The Hawkeye Relay Combination Series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two.
Features
Applications
| Current | Measurement Range: 2.5 to 135 A Sensor Type: Current Switch, AC |
| Monitored | Frequency Range: 50 to 60 Hz Wire Dimensions: 0.8" (21 mm) |
| Operating | Humidity: 10 to 90% RH, non-condensing Temperature: 5 to 140°F (-15 to 60°C) |
| Output Specifications | N.O. 1 A at 250 VAC |
| Relay | Coil Voltage: 24 VAC/DC Construction: Mechanical Contact Ratings: Resistive: 8 A at 250 VAC | Resistive: 8 A at 30 VDC | Inductive: 3.5 A at 250 VAC | Inductive: 3.5 A at 30 VDC Poles/Throw: SPDT |
| Measurement Type | AC Current |
| Mounting | Split Core |
| Electrical Wiring Dimensions | 24 to 14 AWG (0.2 to 2.1 mm2) |
