Veris H940 Current Switch/Relay Combo Split Core Fixed SPDT

Model: H940

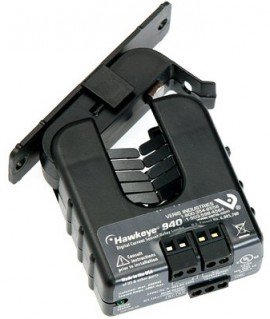

Veris H940 Current Switch/Relay Combo Split Core Fixed SPDT-


Downloads: datasheet

Veris H940 Current Switch/Relay Combo Split Core Fixed SPDT

Model: H940

The Hawkeye Relay Combination Series combines an on/off status sensor and command relay in one package, saving the labor, wire runs, and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.

The Hawkeye Relay Combination Series combines an on/off status sensor and command relay in one package, saving the labor, wire runs, and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.

Sale Price $65.91 USD
Regular Price $78.00 USD
Availability 2 to 3 Weeks
Quantity

Veris H940 Offers

Features

  • Reduce the number of installed components, saves time and space
  • On/off status and command relay in a single labor and space saving device
  • Cost-effectively monitor start/stop, unit vents, fan coils, exhaust fans, and other loads where belt loss is not a concern
  • No calibration required
  • One device to install, reduces installation charges
  • Easier to install than differential pressure switches, no additional wiring needed
  • 100% solid state, no moving parts to fail
  • Removable mounting bracket for installation flexibility
  • Bracket can be installed in three different configurations, added flexibility

Applications

  • Monitoring direct drive units, exhaust fans, and other fixed loads
  • Monitoring on/off status of electrical loads
  • Starting/stopping motors

Veris H940 Specifications

Current Measurement Range: 1.5 to 200 A
Sensor Type: Current Switch, AC
Monitored Frequency Range: 50 to 60 Hz
Wire Dimensions: 0.8" (21 mm)
Operating Humidity: 10 to 90% RH, non-condensing
Temperature: 5 to 140°F (-15 to 60°C)
Output Specifications N.O. 1 A at 250 VAC
Relay Coil Voltage: 24 VAC/DC
Construction: Mechanical Contact Ratings: Resistive: 8 A at 250 VAC | Resistive: 8 A at 30 VDC | Inductive: 3.5 A at 250 VAC | Inductive: 3.5 A at 30 VDC
Poles/Throw: SPDT
Measurement Type AC Current
Mounting Split Core
Electrical Wiring Dimensions 24 to 14 AWG (0.2 to 2.1 mm²)
Click here for complete specifications on the Veris H940

What's included with the Veris H940

  • Veris H940 Current Switch/Relay Combo Split Core Fixed SPDT
