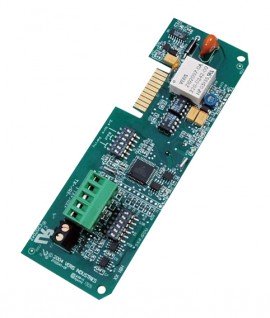

Veris H8186-CB Communications Board for H81xx Series

Model: H8186-CB

Veris H8186-CB Communications Board for H81xx Series-


Downloads: datasheet

Veris H8186-CB Communications Board for H81xx Series

Model: H8186-CB

The communications board is designed to work with the H81xx Series energy meters. It easily connects to the meter to control data systems networks using BACnet protocol. It also reports energy and power diagnostic information including kW, kWh, kVAR, PF, amps, volts, and more.

The communications board is designed to work with the H81xx Series energy meters. It easily connects to the meter to control data systems networks using BACnet protocol. It also reports energy and power diagnostic information including kW, kWh, kVAR, PF, amps, volts, and more.

Sale Price $232.38 USD
Regular Price $275.00 USD
Availability 2 to 3 Weeks
Quantity

The H8186-CB is easy to install in the field. On-board switches provide a convenient means of setting network configuration parameters such as baud rate. Status LEDs provide quick confirmation of successful installation.

Features

  • Easily network to existing systems via RS-485 connection
  • Works with 2-wire systems
  • Field-selectable baud rate: 2400, 4800, 9600, or 19200
  • Measure interval demand and sub-interval demand

Applications

  • Commercial tenant submetering
  • Performance contracting
  • Cost allocation
  • Real-time power monitoring through control/data acquisition systems

Veris H8186-CB Specifications

Output Type BACnet
Connection 2-wire
Baud Rate 9600, 19200, 38400
Address Range 1 to 63
Click here for complete specifications on the Veris H8186-CB

What's included with the Veris H8186-CB

  • Veris H8186-CB Communications Board for H81xx Series
