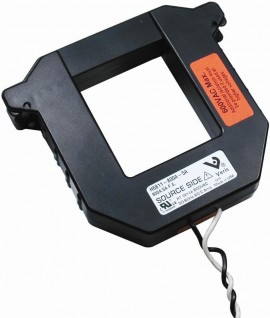

Veris H6811-600A-.3V Split Core Current Transformer

Model: H6811-600A-.3V

Veris H6811-600A-.3V Split Core Current Transformer-

Veris H6811-600A-.3V Split Core Current Transformer

Model: H6811-600A-.3V

The small Hawkeye split-core current transformer features 200 A and a 0.3 A Output.

The small Hawkeye split-core current transformer features 200 A and a 0.3 A Output.

Sale Price $92.61 USD
Regular Price $131.00 USD
Availability 2 in Stock
Quantity

Features

  • Unique hinge design on split-cores...easy installation
  • 5 Amp standard output, compatible with existing systems
  • UL recognized

Applications

  • Data logging
  • Recording
  • Power monitoring
  • Energy management
  • Alternative energy monitoring
  • Cost allocation

Dimensional Drawings

The Dimensions for the H681 Series of Split Core CTs
H6810/Small (200Amp / 300Amp)

A = 3.8" (96 mm)
B = 1.2" (30 mm)
C = 1.3" (32 mm)
D = 1.2" (30 mm)
E = 4.0" (100 mm)
F = 4.8" (121 mm)

H6811/Medium (400Amp / 600Amp / 800Amp)

A = 4.9" (125 mm)
B = 2.9" (73 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 5.2" (132 mm)
F = 6.0" (151 mm)

H6811/Large (800 Amp / 1000 Amp / 1200 Amp / 1600 Amp / 2000 Amp / 2400 Amp)

A = 4.9" (125 mm)
B = 5.5" (139 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 7.9" (201 mm)
F = 6.0" (151 mm)


Veris H6811-600A-.3V Specifications

Accuracy ±1% of reading from 10 to 100% of rated current
Current Measurement Range 0-600 A
Humidity Range 0 to 95%
Frequency Rating 50-60 Hz
Output 0.3 V
Temperature Non-Condensing; Storage: -40 to 158°F (-40 to 70°C)
Operating: 5 to 140°F (-15 to 60°C)
Dimensions 6 x 5.2 x 1.2" (151 x 132 x 33 mm)

What's included with the Veris H6811-600A-.3V

  • Veris H6811-600A-.3V Split Core Current Transformer
