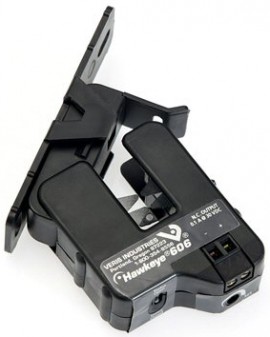

Veris H606 Mini Split Core Adj. Range: 1.25-50AAC Output: N.C. 0.1A

Model: H606

Veris H606 Mini Split Core Adj. Range: 1.25-50AAC Output: N.C. 0.1A-


Downloads: datasheet

Veris H606 Mini Split Core Adj. Range: 1.25-50AAC Output: N.C. 0.1A

Model: H606

Hawkeye 606 Series current switches provide accurate, reliable, and maintenance-free fan and pump status indication.

Hawkeye 606 Series current switches provide accurate, reliable, and maintenance-free fan and pump status indication.

Sale Price $76.90 USD
Regular Price $91.00 USD
Availability 2 to 3 Weeks
Quantity

Veris H606 Offers

Features

  • Cost effective, reduced installation and service costs
  • Adjustable trip point, 4 amperage range options for versatility
  • Easier to install than differential pressure switches, no tubing needed
  • 100% solid-state, no moving parts to fail
  • Output status LEDs for fast setup
  • Self-gripping iris on the split-core housing for easy installation

Applications

  • Monitoring fans, pumps, motors, and other electrical loads
  • Detecting belt loss and motor failure
  • Verifying lighting circuit loads
  • Monitoring critical motors, compressors, and fuel
  • Monitoring industrial process equipment
  • Building automation systems

Veris H606 Specifications

Current Measurement Range: 1.25 to 50 A
Sensor Type: Current Switch, AC
Output Specifications N.C. 0.1 A at 30 VDC
Monitored Frequency Range: 50 to 60 Hz
Wire Dimensions: 0.5" (12 mm)
Operating Humidity: 10 to 90% RH, non-condensing
Temperature: 5 to 140°F (-15 to 60°C)
Relay Coil Voltage: None
Contact Ratings: None
Poles/Throw: None
Measurement Type AC Current
Mounting Split Core
Electrical Wiring Dimensions 24 to 14 AWG (0.2 to 2.1 mm²)
Click here for complete specifications on the Veris H606
