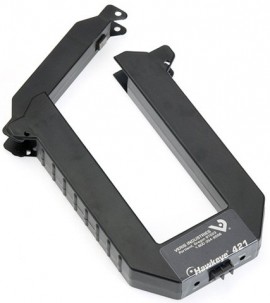

Veris H421SP CT SplitCore 0-2400A 4-20mA Cal Span

Model: H421SP

Downloads: datasheet manual

Veris H421SP CT SplitCore 0-2400A 4-20mA Cal Span

Model: H421SP

H421 analog current transducers provide reliable load trending information for large motor loads (1000 to 2400A), with a proportional 4-20mA signal. This model includes a span potentiometer that allows each sensor to be calibrated for maximum resolution.

Sale Price	$475.00 USD
Regular Price	$500.00 USD
Availability	5 to 6 Weeks
Quantity	Quantity

Veris H421SP CT SplitCore 0-2400A 4-20mA Cal Span Offers

Features

Monitor larger motors and other loads up to 2400A
Split-core design for easy installation and fast retrofits
Eliminates need for external CTs on large conductors
Large openings for heavy conductors
Monitor critical motors (compressor, fuel, etc.)
Loop powered 4-20mA output
Two-wire design reduces wiring cost
Zero and span adjustments for field flexibility
100% solid state...no moving parts to fail
5-year limited warranty

Applications

Ideal for the following applications: Load trending of large motors

Veris H421SP Specifications

Ranges
Frequency	50/60 Hz
Temperature	-15 to 60°C (5 to 140°F)
Humidity	10 to 90% RH, non-condensing
General Specifications
Sensor Power	30mA (max) @ 12-30VDC
Insulation Class	600VAC RMS
Accuracy	2% of FS from 10 to 100% of full scale
Response Time	2 sec.
Zero Adjustment	3.5 to 4.5mA
Agency Approvals	UL 508, open device listing

Click here for complete specifications on the Veris H421SP

What's included with the Veris H421SP

Veris H421SP CT SplitCore 0-2400A 4-20mA Cal Span

datasheet for the Veris H421SP CT SplitCore 0-2400A 4-20mA Cal Span manual for the Veris H421SP CT SplitCore 0-2400A 4-20mA Cal Span
