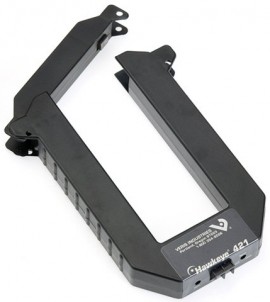

Veris H421 Split Core Span Adj. Range: 0-1200AAC Output: 4-20mA Loo

Model: H421

Veris H421 Split Core Span Adj. Range: 0-1200AAC Output: 4-20mA Loo-


Downloads: datasheet

Veris H421 Split Core Span Adj. Range: 0-1200AAC Output: 4-20mA Loo

Model: H421

H421 analog current transducers provide reliable load trending information for large motor loads (1000 to 2400A), with a proportional 4 to 20mA signal. This model includes a span potentiometer that allows each sensor to be calibrated for maximum resolution.

H421 analog current transducers provide reliable load trending information for large motor loads (1000 to 2400A), with a proportional 4 to 20mA signal. This model includes a span potentiometer that allows each sensor to be calibrated for maximum resolution.

Sale Price $315.19 USD
Regular Price $373.00 USD
Availability 2 to 3 Weeks
Quantity

Veris H421 Offers

Features

  • Monitor larger motors and other loads up to 2400 A
  • Split-core design for easy installation and fast retrofits
  • Eliminates need for external CT on large conductors
  • Large openings for heavy conductors
  • Monitor critical motors (compressor, fuel, etc.)
  • Loop powered 4 to 20 mA output
  • Two-wire design reduces wiring cost
  • Zero and span adjustments for field flexibility
  • 100% solid state, no moving parts to fail

Applications

  • Load trending of large motors
  • Building automation systems

Veris H421 Specifications

Current Measurement Accuracy: ±2% of F.S. above 240 A
Measurement Range: 0 to 2400 A
Sensor Type: Current Transducer, AC
Output Specifications 4 to 20 mA
Monitored Frequency Range: 50 to 60 Hz
Wire Dimensions: 2.4" (61 mm)
Operating Humidity: 10 to 90% RH, non-condensing
Temperature: 5 to 140°F (-15 to 60°C)
Measurement Type AC Current
Mounting Split-Core
Electrical Wiring Dimensions 22 to 12 AWG (0.33 to 3.3 mm²)
Click here for complete specifications on the Veris H421

What's included with the Veris H421

  • Veris H421 Split Core Span Adj. Range: 0-1200AAC Output: 4-20mA Loo
  • Customer Reviews for the Veris H421

    Ask a question about Veris H421 Split Core Span Adj. Range: 0-1200AAC Output: 4-20mA Loo

    comments powered by Disqus

    Veris H421 Offers

    Features

    • Monitor larger motors and other loads up to 2400 A
    • Split-core design for easy installation and fast retrofits
    • Eliminates need for external CT on large conductors
    • Large openings for heavy conductors
    • Monitor critical motors (compressor, fuel, etc.)
    • Loop powered 4 to 20 mA output
    • Two-wire design reduces wiring cost
    • Zero and span adjustments for field flexibility
    • 100% solid state, no moving parts to fail

    Applications

    • Load trending of large motors
    • Building automation systems

    Veris H421 Specifications

    Current Measurement Accuracy: ±2% of F.S. above 240 A
    Measurement Range: 0 to 2400 A
    Sensor Type: Current Transducer, AC
    Output Specifications 4 to 20 mA
    Monitored Frequency Range: 50 to 60 Hz
    Wire Dimensions: 2.4" (61 mm)
    Operating Humidity: 10 to 90% RH, non-condensing
    Temperature: 5 to 140°F (-15 to 60°C)
    Measurement Type AC Current
    Mounting Split-Core
    Electrical Wiring Dimensions 22 to 12 AWG (0.33 to 3.3 mm²)
    Click here for complete specifications on the Veris H421

    What's included with the Veris H421

  • Veris H421 Split Core Span Adj. Range: 0-1200AAC Output: 4-20mA Loo
  • Ask a question about Veris H421 Split Core Span Adj. Range: 0-1200AAC Output: 4-20mA Loo

    Customer Reviews for the Veris H421
