Veris H221SP CT SplitCore 0-300A 4-20mA Cal Span

Model: H221SP

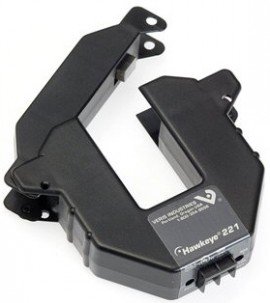

Veris H221SP CT SplitCore 0-300A 4-20mA Cal Span-


Downloads: datasheet

Veris H221SP CT SplitCore 0-300A 4-20mA Cal Span

Model: H221SP

H221SP analog current transducers provide reliable load trending information for large motor loads (up to 300A), with a proportional 4-20mA signal. This model includes a span potentiometer that allows each sensor to be calibrated for maximum resolution.

H221SP analog current transducers provide reliable load trending information for large motor loads (up to 300A), with a proportional 4-20mA signal. This model includes a span potentiometer that allows each sensor to be calibrated for maximum resolution.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Current Transformers category for similar products.

Or let's do a search and help you find what you need:


Veris H221SP CT SplitCore 0-300A 4-20mA Cal Span Offers

The H120 Series devices offer a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation. Eliminate the labor associated with installing a separate current sensor.

Features

  • Monitor large motors and other loads up to 300A
  • Split-core design for easy installation and fast retrofits
  • Eliminates need for external CTs on large conductors
  • Large openings for heavy conductors
  • Monitor critical motors (compressor, fuel, etc.)
  • Two-wire design reduces wiring cost
  • Zero and span adjustments for field flexibility
  • 100% solid state...no moving parts to fail
  • 5-year limited warranty

Applications

  • Load trending of large motors
  • Building automation systems

Veris H221SP Specifications

Current Measurement Accuracy: ±2% of F.S. above 30 A
Range: 0 to 300 A
Current Sensor Type Current Transducer, AC
Measurement Type AC current
Monitored Frequency Range 50 to 60 Hz
Operating Humidity: 10 to 90% RH, non-condensing
Temperature: 5 to 140"F (-15 to 60°C)
Output Specifications 4 to 20 mA
Electrical Wiring Dimensions 22 to 12 AWG (0.33 to 3.3 mm²)
Monitored Wire Dimensions 1.4" (35 mm)
Click here for complete specifications on the Veris H221SP

What's included with the Veris H221SP

  • Veris H221SP CT SplitCore 0-300A 4-20mA Cal Span

Ask a question about Veris H221SP CT SplitCore 0-300A 4-20mA Cal Span
