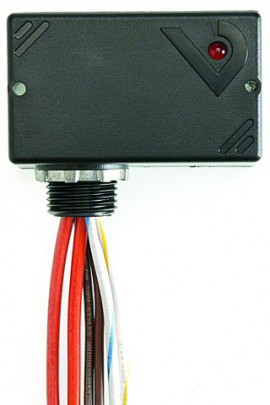

Veris H120NC Enclosed Relay Current Switch 20A NC Fixed

Model: H120NC

Downloads: datasheet

Veris H120NC Enclosed Relay Current Switch 20A NC Fixed

Model: H120NC

The enclosed relay current switch offers a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package, it eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

Veris H120NC Offers

The H120 Series devices offer a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation. Eliminate the labor associated with installing a separate current sensor.

Features

The current switch and relay are in series...connect the contacts to the load and your current switch is automatically installed
The nipple mount housing can be connected to any 1/2" conduit knockout for installation versatility
Relay coil LED streamlines job commissioning and check out
HP ratings make the H120 ideal for control and status of fractional HP motors
5-year limited warranty
NEMA 1 rated housing may be used in plenum spaces
Can be externally mounted to the electrical enclosure...space saver
0.1A turn-on...easily monitors the smallest motors

Applications

Unit Ventilators
Fan Coil Units
Exhaust Fans
Fan Terminal Units
Fractional HP Motors
Light Resistive Loads

Veris H120NC Specifications

Sensor
Amperage Range	0.1 to 20 A
Sensor Power	Induced from relay coil power
Operating Temperature	5 to 140°F (-15 to 60°C) (13.8 A maximum) 5 to 12°F (-15 to 50°C) (2 A maximum)
Operating Humidity	10 to 90% RH non-condensing
Expected Relay Life (mechanical)	10 million cycles
Relay Status	LED ON=energized
Status Output	N.C. 100 mA at 30 Vac/dc
Lead Wire
Style and Gauge	UL1015; Coil: 18 AWG; Contacts: 12 AWG Status: 16 AWG
Lead Length	14" (356 mm) minimum

Click here for complete specifications on the Veris H120NC
