Veris H120 Enclosed Relay Current Switch 20A Fixed

Model: H120

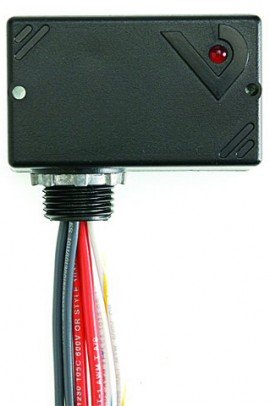

Veris H120 Enclosed Relay Current Switch 20A Fixed-


Downloads: datasheet

Veris H120 Enclosed Relay Current Switch 20A Fixed

Model: H120

The enclosed relay current switch offers a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package, it eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation.

The enclosed relay current switch offers a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package, it eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation.

Sale Price $54.08 USD
Regular Price $64.00 USD
Availability 2 to 3 Weeks
Quantity

Veris H120 Offers

The H120 Series devices offer a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation. Eliminate the labor associated with installing a separate current sensor.

Features

  • The current switch and relay are in series...connect the contacts to the load and your current switch is automatically installed
  • The nipple mount housing can be connected to any 1/2" conduit knockout for installation versatility
  • Relay coil LED streamlines job commissioning and check out
  • HP ratings make the H120 ideal for control and status of fractional HP motors
  • 5-year limited warranty
  • NEMA 1 rated housing may be used in plenum spaces
  • Can be externally mounted to the electrical enclosure...space saver
  • 0.1A turn-on...easily monitors the smallest motors

Applications

  • Unit Ventilators
  • Fan Coil Units
  • Exhaust Fans
  • Fan Terminal Units
  • Fractional HP Motors
  • Light Resistive Loads

Veris H120 Specifications

Sensor
Amperage Range 0.1 to 20 A
Sensor Power Induced from relay coil power
Operating Temperature 5 to 140 °F (-15 to 60 °C) (13.8 A maximum)
5 to 12 °F (-15 to 50 °C) (2 A maximum)
Operating Humidity 10 to 90% RH non-condensing
Expected Relay Life (mechanical) 10 million cycles
Relay Status LED ON=energized
Status Output N.O. 100 mA at 30 Vac/dc
Lead Wire
Style and Gauge UL1015; Coil: 18 AWG; Contacts: 12 AWG
Status: 16 AWG
Lead Length 14" (356 mm) minimum
Click here for complete specifications on the Veris H120

What's included with the Veris H120

  • Veris H120 Enclosed Relay Current Switch 20A Fixed
  • Customer Reviews for the Veris H120

    Ask a question about Veris H120 Enclosed Relay Current Switch 20A Fixed

    comments powered by Disqus

    Veris H120 Offers

    The H120 Series devices offer a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation. Eliminate the labor associated with installing a separate current sensor.

    Features

    • The current switch and relay are in series...connect the contacts to the load and your current switch is automatically installed
    • The nipple mount housing can be connected to any 1/2" conduit knockout for installation versatility
    • Relay coil LED streamlines job commissioning and check out
    • HP ratings make the H120 ideal for control and status of fractional HP motors
    • 5-year limited warranty
    • NEMA 1 rated housing may be used in plenum spaces
    • Can be externally mounted to the electrical enclosure...space saver
    • 0.1A turn-on...easily monitors the smallest motors

    Applications

    • Unit Ventilators
    • Fan Coil Units
    • Exhaust Fans
    • Fan Terminal Units
    • Fractional HP Motors
    • Light Resistive Loads

    Veris H120 Specifications

    Sensor
    Amperage Range 0.1 to 20 A
    Sensor Power Induced from relay coil power
    Operating Temperature 5 to 140 °F (-15 to 60 °C) (13.8 A maximum)
    5 to 12 °F (-15 to 50 °C) (2 A maximum)
    Operating Humidity 10 to 90% RH non-condensing
    Expected Relay Life (mechanical) 10 million cycles
    Relay Status LED ON=energized
    Status Output N.O. 100 mA at 30 Vac/dc
    Lead Wire
    Style and Gauge UL1015; Coil: 18 AWG; Contacts: 12 AWG
    Status: 16 AWG
    Lead Length 14" (356 mm) minimum
    Click here for complete specifications on the Veris H120

    What's included with the Veris H120

  • Veris H120 Enclosed Relay Current Switch 20A Fixed
  • Ask a question about Veris H120 Enclosed Relay Current Switch 20A Fixed

    Customer Reviews for the Veris H120
