Veris E31E004 Multi-Circuit/Panelboard Monitoring System, advanced with Ethernet, two 3-phase mains

Model: E31E004

Veris E31E004 Multi-Circuit/Panelboard Monitoring System, advanced with Ethernet, two 3-phase mains-


Downloads: datasheet

Veris E31E004 Multi-Circuit/Panelboard Monitoring System, advanced with Ethernet, two 3-phase mains

Model: E31E004

The multi-circuit split-core panelboard system provides a solution for electrical load management and is ideal for retro-fit applications for dynamic loads. Two 3-phase mains.

The multi-circuit split-core panelboard system provides a solution for electrical load management and is ideal for retro-fit applications for dynamic loads. Two 3-phase mains.

Sale Price $4661.02 USD
Regular Price $5516.00 USD
Availability 2 to 3 Weeks
Quantity

Veris E31E004 Offers

The multi-circuit split-core panelboard system provides a solution for electrical load management and is ideal for retro-fit applications for dynamic loads. Two 3-phase mains.

Features

  • ANSI and IEC Class 1 metering system accuracy (1%, including branch CTs)
  • Built-in Ethernet and serial communication with Modbus, BACnet and SNMP protocols
  • Versatile support for any combination of 1, 2, 3 pole breakers
  • Phase angle measurements of every current and voltage input
  • Energy snapshots and demand measurements
  • Signed Power factor to indicate leading or lagging current
  • Signed Power to indicate import/export of energy
  • Reports voltage, current, power and energy for mains and branches; 1 product covers the whole panelboard
  • Monitors up to 46 circuits (42 branch circuits, two 3-phase main, 2 neutral) with 1 device to save space
  • 2 branch CT adapter board mounting options

Applications

  • Data Center Energy Management
  • Retrofit Branch Circuit Monitoring Into Existing Panels
  • Overload Protection and Infrastructure Management
  • Subtenant Billing
  • Load-Based Cost Allocation
  • Overload Protection
  • Load Management
  • Load Balancing
  • Lighting Circuit Monitoring

Veris E31E004 Specifications

Measurement Input Voltage 90 to 277 VAC, 50/60 Hz
Control Power Voltage 100 to 277 VAC, 50/60 Hz
Power/Energy IEC 62053-21 Class 1, ANSI C12.1-2008 (1% system accuracy, including 50 A or 100 A branch CTs)
Voltage ±0.5% of reading 90 to 277 V line-to-neutral
Sampling Frequency 2,560 Hz
Update Rate Modbus: 1.8 seconds; BACnet: 14 seconds; SNMP: 20 seconds
Overload Capability 22 kAIC
Physical Interface 10/100 Mbit Ethernet
Protocols Supported Modbus TCP, BACnet IP, SNMP
Physical Interface 2-wire RS-485
Protocols Supported Modbus RTU, BACnet MS/TP
Address 1 and 2
Baud Rate Selectable: 9600, 19200, 38400
Parity Selectable: NONE, ODD, EVEN
Communication Format 8 data-bits, 1 start-bit, 1 stop-bit
Ribbon Cable Support Up to 20' (6 m) ribbon cables available; none provided (sold separately)
Branch CT Support 50A, 100 A and 200 A split-core CTs available; none provided (sold separately)
Operating Temperature 32 to 140°F (0 to 60°C) <95% RH non-condensing
Storage Temperature -40 to 158°F (-40 to 70°C)
Click here for complete specifications on the Veris E31E004

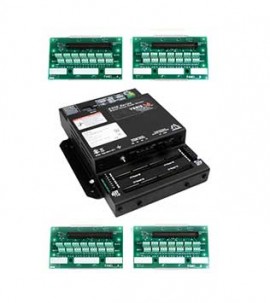

What's included with the Veris E31E004

  • Advanced Measurement Unit with Metal Housing
  • 4 x CT Adapter Boards To Monitor Up To 84 Branch Circuits
  • 2 x 3-Phase Mains
  • 2 x Neutrals
