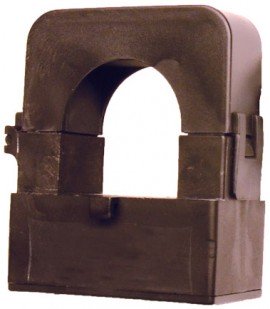

Single split-core current transducer for loads up to 200 A with 6 ft (1.8 m) leads for use with the E31 or H663 panelboard monitoring system.
Single split-core current transducer for loads up to 200 A with 6 ft (1.8 m) leads for use with the E31 or H663 panelboard monitoring system.
Features
| Accuracy | 1% System, ±0.5% of Reading 90 to 277 VAC Line-to-Neutral Voltage, ±0.5% of Reading from Current |
| Frequency Rating | 50 to 60 Hz |
| Temperature | Storage: -40 to 158°F (-40 to 70°C) Operating: 32 to 140°F (0 to 60°C) |
| Humidity Range | Less than 95% RH non-condensing |
| Altitude of Operation | 3000 m |
| Output Specifications | Modbus RTU, 2 or 4 wire, RS485 |
| Mounting | Split-Core |
| Dimensions | 8.75 x 9.75" (222 x 248 mm) |
| Accuracy | 1% System, ±0.5% of Reading 90 to 277 VAC Line-to-Neutral Voltage, ±0.5% of Reading from Current |
| Frequency Rating | 50 to 60 Hz |
| Temperature | Storage: -40 to 158°F (-40 to 70°C) Operating: 32 to 140°F (0 to 60°C) |
| Humidity Range | Less than 95% RH non-condensing |
| Altitude of Operation | 3000 m |
| Output Specifications | Modbus RTU, 2 or 4 wire, RS485 |
| Mounting | Split-Core |
| Dimensions | 8.75 x 9.75" (222 x 248 mm) |
