TED Pro Commercial Kit Three-Phase Energy Monitoring System with Spyder 200-D, 400A

Model: TED Pro Commercial Kit | Order No: TED PRO COMMERCIAL-KIT

TED Pro Commercial Kit Three-Phase Energy Monitoring System with Spyder 200-D, 400A-

TED Pro Commercial Kit Three-Phase Energy Monitoring System with Spyder 200-D, 400A

Model: TED Pro Commercial Kit | Order No: TED PRO COMMERCIAL-KIT

Designed for use in commercial or small industrial facilities, and is suitable for any three-phase system up to 400A. View energy data on a wireless display, computer, Internet, or mobile device, while alerts are automatically sent via text message or email. Colored LEDs alert for rate-tier changes, high demand, cost, or other defined parameters. This kit includes the Spyder 200-D.

Designed for use in commercial or small industrial facilities, and is suitable for any three-phase system up to 400A. View energy data on a wireless display, computer, Internet, or mobile device, while alerts are automatically sent via text message or email. Colored LEDs alert for rate-tier changes, high demand, cost, or other defined parameters. This kit includes the Spyder 200-D.

This product has been discontinued. Contact us for more information.


TED Pro Commercial Kit Offers

Features

  • State-of-the-art system for use in commercial or small industrial facility
  • It is designed to work on any three-phase electrical system up to 400A
  • Allows you to monitor and manage energy usage
  • Energy use and alerts can be presented on a custom display, computer, over the Internet, on mobile devices or by text or email messages
  • Colored LEDs alert you to rate-tier changes, high demand, cost or other user-defined parameters
  • Compatible with numerous energy or demand-rate billing systems, including fixed, time-of-use, step/tiered, seasonal, demand, or any combination of those mentioned
  • It also accommodates taxes, fixed charges, and fuel surcharges to accurately reflect the monthly electric bill
  • Measuring Transmitting Unit (MTU) features state-of-the-art Power Line Carrier communication (PLC)
  • The Energy Control Center (ECC) is the communication hub for the system

TED Pro MTU

The Measuring Transmitting Unit (MTU) measures the energy consumption, demand voltage, current, and power factor. It is designed for three-phase systems in small-to-medium size commercial, institutional and industrial environments. It is suitable for any three-phase system up to 400A. It has two options for data-communication between MTU and ECC: PLC or Ethernet.

The MTU is generally located at the main electrical panel and transmits the information collected over the building's existing electrical wiring, using state-of-the-art Power Line Carrier communications (PLC) to an ECC which receives and interprets the data. Multiple MTUs can be used to give individual measurement of panels or loads. For systems with solar, wind or other alternative generation, TED will provide the user consumption, generation and net usage.

TED Pro ECC

The Energy Control Center (ECC) is the communication hub for the system. It receives raw energy-use data from the MTU(s), interprets the data and calculates the current energy cost, cost today, month-to-date, and various other calculations. The ECC can be configured to communicate with display devices, computers, networks, mobile devices, thermostats, and load control devices via Ethernet, PLC, or WiFi. The TED system can be further configured to send text or e-mail alerts using TED Advisor software.

Multiple ECCs in multiple locations can be monitored via the internet using TED's proprietary Commander software.

TED Spyder 200-D

The Spyder is a monitoring device that comes with eight current transformers. Each leg can monitor circuits up to 200A. The CTs are designed to go around individual circuit conductors inside your breaker panel. It will log data for individual circuits/ appliances/ systems/ motors.

Facts

  • Accuracy at <7% error
  • A displayed load will be shown for each individual CT connected to the Spyder
  • Spyder software provides the option to view each circuit-data individually, or sum specific circuit-measurements
  • Measurements are not added to Footprints Dashboard monthly calculations - all data is summarized under the Spyder tab on the Dashboard
  • Data includes month-to-date kWh, $, and % of total household load
  • Data can be graphed as well as downloaded to a spreadsheet
  • It will display a zero-load (‘off') until the circuit-load reaches a minimum threshold
  • Data is posted every one-minute

Go further with these options:

  • Multiple MTUs can be added to separately measure various loads or generation
  • TED Spyder:
    • Mounts in, or beside the electrical panel and is connected to the MTU
    • Records detailed usage of up to 8 single or multi-phase circuits
    • These individual readings are stored in the ECC for display
    • Each TED system can support up to 4 MTUs and 4 Spyders, thus monitoring up to 36 separate, individual loads
  • Multiple systems can be used and the data aggregated at a central location
  • Communication modules (ECC includes two USNAP ports, an Ethernet and USB port):
    • WiFi modules – Allow wireless communication with a router or other WiFi-enabled device
    • ZigBee modules – Allows communication with Smart Meters, Smart Thermostats and other ZigBee- enabled devices
  • Smart Thermostats:
    • WiFi or ZigBee-based

Applications

  • Commercial
  • Industrial
  • Energy monitoring

More Information

To learn more about the TED PRO 400, start here: TED PRO 400.

TED Pro Commercial Kit Specifications

Measuring Transmitting Unit (MTU)
Single-phase 2-wire or 3-wire Yes
Frequency 50/60 Hz
Maximum voltage - Phase/Phase 600V
Maximum voltage - Phase/Neutral 347V
Minimum voltage 180V
Maximum current - per phase 400A
Maximum wire size 500 MCM (23mm OD)
Operating temperature -40°C<TA>+50°C
Overall Accuracy Better than ±2%
Data-Receiving Unit (ECC)
Works with single phase MTU Yes
Maximum voltage - Phase/Neutral 277V
Minimum voltage - Phase/Neutral 95V
Frequency 50/60 Hz
Operating temperature +5°C<TA<+40°C
LED Power-on: Blue
Link status: Green/ Yellow
Transmit/Receive: Green/Red
Energy-use indicator bar: Green/Yellow/Red
Spyder 200-D
Measuring load >500W
Minimum load 200W
Circuit 20 to 200A
Accuracy +/-7% (500W to 14.4kW)
Diameter 0.63" (16.2 mm)

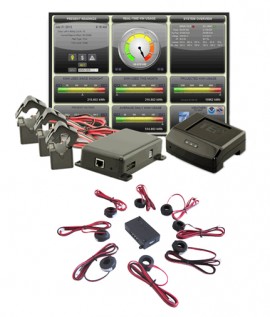

What's included with the TED Pro Commercial Kit

  • Energy Control Center (ECC)
  • Measuring Transmitting Unit (MTU PRO)
  • 3 x 400A Split-Core CTs
  • Spyder with 8 x 200A Solid-Core CTs
  • MTU Power Cable
  • ECC Power Cable
  • Footprints Software
  • TED Commander Remote Monitoring
  • Installation Manual

All TED Pro packages come with interactive Footprints Software which provides real-time readings, estimated bills, voltage readings, current rate structures and more helpful information.

View a Live Demo Here

TED Pro Home Overview 1


Helping your Business with TED Pro


TED - 120V MTU Connection


Accessing Footprints Software


Footprints Software Settings


TED Pro Troubleshooting


Verifying TED Installation Direct Connection

Accessories

Click on a category to view a selection of compatible accessories with the TED Pro Commercial Kit Three-Phase Energy Monitoring System with Spyder 200-D, 400A.

TED RC5001 Rogowski Coil, 36", 5000A RC5001
Featuring a flexible 5000A Rogowski Coil that is 36 inches in length. To be used in conjunction with the MTU PRO.
$299.00 USD

Learn More

TED CT302 Split-Core Current Transformer, 400A CT302
Ideal solution for services with aluminum conductors where a 200A CT is too small. To be used in conjunction with the MTU PRO.
$39.00 USD

Learn More

TED MTU Pro Three-Phase Measuring Transmitting Unit MTU PRO
Designed for three-phase systems in small-to-medium size commercial, institutional and industrial environments. It is suitable for systems that have a maximum of 600 V/1200 A, and services with a maximum of 400 to 1200 A. It offers two options for data communication between it and the ECC: PLC or Ethernet. Power cable not included.
$399.00 USD

Learn More

TED MTU PRO-RC Measuring Transmitting Unit MTU PRO-RC
Designed for three-phase systems in small-to-medium size commercial, institutional and industrial environments. It is suitable for services that have a maximum of 600 V, and for 2000 A or 5000 A Rogowski Coils. It offers two options for data communication between it and the ECC: PLC or Ethernet. Power cable not included.
$599.00 USD

Learn More
