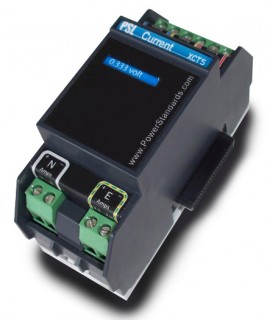

PSL XCT5 External CT Module for PQube Power Quality Analyzer - 333mV input

Model: XCT5-0.333V-00

PSL XCT5 External CT Module for PQube Power Quality Analyzer - 333mV input-

PSL XCT5 External CT Module for PQube Power Quality Analyzer - 333mV input

Model: XCT5-0.333V-00

XCT5 module enables the use of external CTs with a 333mV secondary to attach to PQube power quality analyzer. 5 channels of current monitoring.

XCT5 module enables the use of external CTs with a 333mV secondary to attach to PQube power quality analyzer. 5 channels of current monitoring.

This product has been discontinued. Contact us for more information.


XCT5 Current Transformer Module

The XCT5 Current transformer module connects your existing CT's with your PQube Power Meter. The external CT input ratio range is 1:1 to 1000:1. The XCT5 Series connects directly to voltage output current transformer wires and has 5 channels of current monitoring.

Features

  • Accuracy ±1% (plus uncertainty of external CT's)
  • Adds current waveforms to PQube events
  • Enables power consumption and energy monitoring
  • Crest factor typically 3.5 times rated input

Specs

  • 2.8"W x 3.5"H x 3.2"L
  • 0.5 lbs.

What's included with the PSL XCT5-0.333V-00

  • PSL XCT5 External CT Module for PQube Power Quality Analyzer - 333mV input
  • Customer Reviews for the PSL XCT5-0.333V-00

    Ask a question about PSL XCT5 External CT Module for PQube Power Quality Analyzer - 333mV input

    comments powered by Disqus

    XCT5 Current Transformer Module

    The XCT5 Current transformer module connects your existing CT's with your PQube Power Meter. The external CT input ratio range is 1:1 to 1000:1. The XCT5 Series connects directly to voltage output current transformer wires and has 5 channels of current monitoring.

    Features

    • Accuracy ±1% (plus uncertainty of external CT's)
    • Adds current waveforms to PQube events
    • Enables power consumption and energy monitoring
    • Crest factor typically 3.5 times rated input

    Specs

    • 2.8"W x 3.5"H x 3.2"L
    • 0.5 lbs.

    What's included with the PSL XCT5-0.333V-00

  • PSL XCT5 External CT Module for PQube Power Quality Analyzer - 333mV input
  • Ask a question about PSL XCT5 External CT Module for PQube Power Quality Analyzer - 333mV input

    Customer Reviews for the PSL XCT5-0.333V-00
