PSL PQ3iaB-Rugged-Wall-M24-0000-00 Offers

Ideal for monitoring distribution lines. The enclosure is IP44 rated, vented for temperature reduction, and made from non-corrosive polycarbonate. The cellular modem ready option is perfect for data collection where Ethernet connectivity is unavailable. Power can be drawn from the monitored line, or from a separate instrument power line.

Features

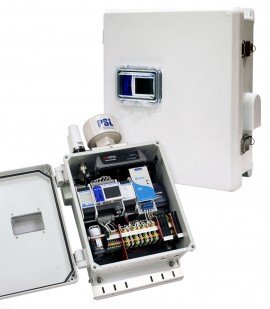

• PQube 3 Power Analyzer, pre-packaged in an IP44 rated rugged polycarbonate indoor/outdoor wall-mount enclosure
• Modem mounting kit for your cell modem, Compatible modems: Landcell 882, Airlink Raven XE, Airlink GX, MultiModem rCell
• Hinged window permits safe touch screen display access - for configuration and real-time meter viewing
• Quick connect terminal blocks for easy field wiring
• Wide measurement voltage range - 100~480Vac
• Eight current channels - 333mV or ±10V peak
• Relay output, 4 analog and digital inputs
• PQube 3 powered from measured voltage, and comes with 1-hour battery backup
• Just drill holes for your conduit or cable glands, connect wiring, and you're ready to go
• Support for extended capacity battery module (UPS2 module)
• Now with 95% of features of the PQube Classic
• Option to extend event RMS recording to 16s (RMS 1 cycle window sliding every cycle)
• Option to use the entire event recording buffer at the start of the event, as an alternate to using half of the buffer for the beginning of the event and half for the end of the event
• Hide IP address on web pages
• Nominal frequency 16.67Hz (railways), 400Hz (aviation), or no mains voltage connected (fixed sampling frequency)
• DC voltage can be connected to the mains inputs (0VDC‐1000VDC) (fixed sampling frequency)
• Dual voltage /upstream/downstream – improved graph presentations
• Unsent emails are sent after PQube is restarted (e.g.when PQube3 is shuts down while events email are processed or in queue).
• Secure - comes with padlockable door clasps
• No software required!

Applications

Industrial and commercial power-grid monitoring
