PSL PQube 3 Power Analyzer with Wall-Mount

Model: PQ3iaB-Rugged-Wall-000-0000-00

PSL PQube 3 Power Analyzer with Wall-Mount-


Downloads: datasheet manual

PSL PQube 3 Power Analyzer with Wall-Mount

Model: PQ3iaB-Rugged-Wall-000-0000-00

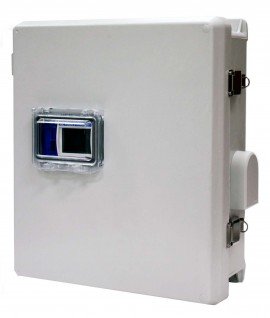

This wall-mounted Power Analyzer is housed within a rugged, IP44 rated, non-corrosive, polycarbonate enclosure and comes with a hinged window for viewing, or access, to the PQube 3's touchscreen display.

This wall-mounted Power Analyzer is housed within a rugged, IP44 rated, non-corrosive, polycarbonate enclosure and comes with a hinged window for viewing, or access, to the PQube 3's touchscreen display.

This product has been discontinued. Contact us for more information.


PSL PQ3iaB-Rugged-Wall-000-0000-00 Offers

Ideal for monitoring distribution lines. The enclosure is IP44 rated, vented for temperature reduction, and made from non-corrosive polycarbonate.

3.5.0 Firmware Release Notes

Features

  • PQube 3 Power Analyzer, pre-packaged in an IP44 rated rugged polycarbonate indoor/outdoor wall-mount enclosure
  • Hinged window permits safe touch screen display access - for configuration and real-time meter viewing
  • Quick connect terminal blocks for easy field wiring
  • Wide measurement voltage range - 100~480Vac
  • Eight current channels - 333mV or ±10V peak
  • Relay output, 4 analog and digital inputs
  • PQube 3 powered from measured voltage, and comes with 1-hour battery backup
  • Just drill holes for your conduit or cable glands, connect wiring, and you're ready to go
  • Support for extended capacity battery module (UPS2 module)
  • Now with 95% of features of the PQube Classic
    • Option to extend event RMS recording to 16s (RMS 1 cycle window sliding every cycle)
    • Option to use the entire event recording buffer at the start of the event, as an alternate to using half of the buffer for the beginning of the event and half for the end of the event
    • Hide IP address on web pages
  • Nominal frequency 16.67Hz (railways), 400Hz (aviation), or no mains voltage connected (fixed sampling frequency)
  • DC voltage can be connected to the mains inputs (0VDC‐1000VDC) (fixed sampling frequency)
  • Dual voltage /upstream/downstream – improved graph presentations
  • Unsent emails are sent after PQube is restarted (e.g.when PQube3 is shuts down while events email are processed or in queue).
  • Secure - comes with padlockable door clasps
  • No software required!

Applications

Industrial and commercial power-grid monitoring

PSL PQ3iaB-Rugged-Wall-000-0000-00 Specifications

Operating Temperature Range -20°C ~ +50°C
Humidity Range 5%~ 90%RH
Protection Rating IP44
Field Wire Gauge Low Voltage Inputs/Relay Outputs/Current Inputs: 26-12 AWG (0.14-2.5mm2)
Voltage Inputs/Instrument Power Inputs: 24-10AWG (0.2-4mm2)
Voltage Input Range 100~480Vac
Current Input Range 333mV or +/- 10V peak (through split-core CT's or flexible CT's)
UPS Backup 5 minutes to 1 hour - user configurable
Weight 12 lbs (5.5 kg)
Material Polycarbonate with stainless steel claps
Click here for complete specifications on the PSL PQ3iaB-Rugged-Wall-000-0000-00

What's included with PSL PQ3iaB-Rugged-Wall-000-0000-00

  • PSL PQube 3 Power Analyzer
  • IP44 rated rugged polycarbonate indoor/outdoor wall-mount enclosure (Pre-packaged)
