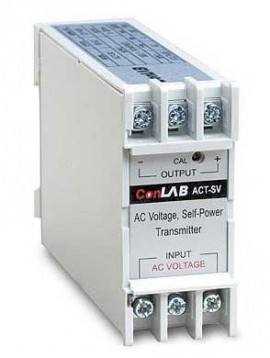

Onset HOBO T-CON-ACT-150 AC Voltage Transmitter Sensor, 0 to 150 V

Model: T-CON-ACT-150

Onset HOBO T-CON-ACT-150 AC Voltage Transmitter Sensor, 0 to 150 V-

Downloads: manual

Onset HOBO T-CON-ACT-150 AC Voltage Transmitter Sensor, 0 to 150 V

Model: T-CON-ACT-150

0-150 volt self-powered transformer for monitoring sine wave, single-phase AC voltage. Requires CABLE-4-20MA Input Cable for use with U12 loggers.

0-150 volt self-powered transformer for monitoring sine wave, single-phase AC voltage. Requires CABLE-4-20MA Input Cable for use with U12 loggers.

Your Price $235.00 USD
Availability 10 to 11 Weeks
Quantity

Onset HOBO T-CON-ACT-150 Specifications

Ranges 0 to 150 Volts RMS
Sensor Accuracy < ±0.1% of Span (20 to 120% of Range) ±0.25% of Span (10% of Range)
Over Range +20% of Span
Over Load +40% of Span
Frequency 60 Hz AC
Supply Self-Powered
Output 0 to 20 mA
Response Time to 90% <240 msec
Operating Conditions -20 to 70°C (-4 to 158°F)
5 to 95% RH, Non-Condensing
Housing Plastic Polycarbonate
Protection Level According to IP-10 DIN 40050
Mounting Standard 35mm DIN Rail

What's included with the Onset HOBO T-CON-ACT-150

  • Onset HOBO T-CON-ACT-150 AC Voltage Transmitter Sensor, 0 to 150 V
manual for the Onset HOBO T-CON-ACT-150 AC Voltage Transmitter Sensor, 0 to 150 V

Ask a question about Onset HOBO T-CON-ACT-150 AC Voltage Transmitter Sensor, 0 to 150 V

Customer Reviews for the Onset HOBO T-CON-ACT-150
