Leviton A8814-163 Energy Monitoring Hub+ Data Acquisition Server with 3 Phase Meter, Includes 1600A CT's, Self Powered

Model: A8814-163 | UPC: 078477695562

Leviton A8814-163 Energy Monitoring Hub+ Data Acquisition Server with 3 Phase Meter, Includes 1600A CT's, Self Powered-


Downloads: datasheet manual

Leviton A8814-163 Energy Monitoring Hub+ Data Acquisition Server with 3 Phase Meter, Includes 1600A CT's, Self Powered

Model: A8814-163

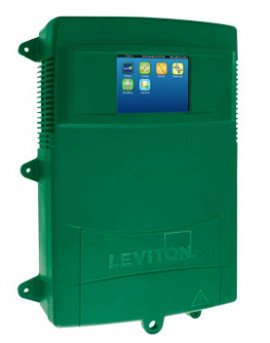

The Leviton A8814-163 EMH+ integrated meter and hub combines an onboard revenue-grade power meter, a Leviton data acquisition HUB and web server in a flexible all-in-one package. This simple and effective energy solution can be used to meet energy codes and mandates and is ideal for new construction and commercial buildings. Installation is simple as the device draws power from the connected voltage sense lines - no external power supply required.

The Leviton A8814-163 EMH+ integrated meter and hub combines an onboard revenue-grade power meter, a Leviton data acquisition HUB and web server in a flexible all-in-one package. This simple and effective energy solution can be used to meet energy codes and mandates and is ideal for new construction and commercial buildings. Installation is simple as the device draws power from the connected voltage sense lines - no external power supply required.

This product has been discontinued. Contact us for more information.


Leviton A8814-163 Offers

Features

  • Data Collection: Logs and collects data on user selected intervals. Non-volatile memory stores data until the next scheduled upload or manual download
  • Compatible with VerifEye BMO 3.0* allowing users to quickly access energy consumption information from a web-based platform
  • Tracks real-time energy usage for demand response programs
  • Meter data can be transferred to energy dashboards, kiosks and software applications
  • Expandable via ModBus RTU and ModBus TCP
  • Supports BACNet and other protocols on one device
  • Seamlessly integrates with BMS and BAS systems
  • Five year warranty
  • Similar SmartPhone layout
  • System set up from touch screen
  • Set communication modules from the full color touch screen

Applications

Use VerifEye EMH+ in commercial, institutional, industrial and government applications for:

  • Load profiling and benchmarking
  • AMR/BAS/EMS integration
  • Use aggregation
  • Tenant cost allocation
  • Measurement and verification
  • Energy conservation and cost reduction
  • Green building initiatives and Government mandates

Leviton A8814-163 Specifications

Device
Processor ARM9 Embedded CPU, ARM7 Meter Board
Operating System Linux 2.6
Memory 32 MB RAM
Flash ROM 16 MB NOR Flash
Interval Recording 1 to 60 Minutes, User Selectable (Default 15 Minutes)
LEDs Ethernet, ModBus TX/RX, Power, Alarm
Console TFT Touch Screen
Isolation RJ45 Ethernet and RS485 Port are Isolated
Serial Port Supports up to 32 External Devices (Expandable)
Inputs
Input Voltage 208-480VAC Three Phase, 50/60 Hz; 120,240,277VAC Single Phase, 50/60 Hz
Input Current .333V and 1V (Current Transformer)
Power Consumption 8W Max
Current Transformers (CTs) 100A, 200A, 300A, 400A, 600A, 800A, 1,600A, 3,000A, 5,000A
Serial Port RS-485 ModBus
Accuracy
Meter Accuracy Meets or Exceeds ANSI C12.1 (Class 1% Meter), from 2% to 100% of Full Scale
Communication
Protocols ModBus/RTU, ModBus/TCP, TCP/IP, PPP, HTTP/HTML, FTP, NTP, XML, SNMP-Trap, Optional BacNet/IP
LAN RJ45 10/100 Ethernet, Full Half Duplex, Auto Polarity
Baud Rate 9600, 19200, 38400, 57600, 115200
Environment
North America -22 to 122°F (-30 to 50°C), 95% RH, Non-Condensing
Safety
UL UL 61010-1 Listed
CE IEC 61010-1
EMC
FCC CFR 47 Part 15, Class A
CE EN 61000, EN 61326
Click here for complete specifications on the Leviton A8814-163

What's included with the Leviton A8814-163

  • Leviton A8814-163 Energy Monitoring Hub+ Data Acquisition Server with 3 Phase Meter, Includes 1600A CT's, Self Powered
  • BMO 3.0 - How to Create a BMO Account and Sign In

    BMO 3.0 - How to Add Your First Hub

    BMO 3.0 - How to Navigate a Hub

    BMO 3.0 - How to Navigate a Device

    Customer Reviews for the Leviton A8814-163

    Ask a question about Leviton A8814-163 Energy Monitoring Hub+ Data Acquisition Server with 3 Phase Meter, Includes 1600A CT's, Self Powered
