HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs, HTFLEX33

Model: PQA823

Downloads: datasheet manual

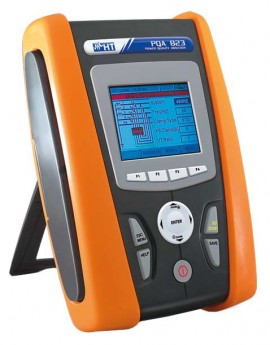

HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs, HTFLEX33

Model: PQA823

This PQA has a great internal memory in order to save recording results for lots of parameters. With its user-friendly interface and touch screen LCD display you can select any kind of feature and a contextual help is available.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

AEMC 8333 True RMS Power Quality Analyzer with three current probes, three-phase, 40 to 69 Hz

Model: 8333 w/3 MN193-BK | Order No: 2136.12

Easy to use, compact, and shock resistant, this three-phase power quality analyzer allows technicians and engineers to measure and carry out diagnostics and power quality work on single- or three-phase networks. In addition, this three-phase power quality analyzer comes with three MN193 current probes.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

HT Instruments SP-0400 Neck Straps

SP-0400

HT Instruments HT903 External CTs Connection

HT903

HT Instruments HT98U Rigid Clamp, 1000 A DC

HT98U

HT Instruments HT4005N Rigid Clamp, 50 to 100 AC

HT4005N

HT Instruments HP30C2 Rigid Clamp, 200-2000A AC

HP30C2

HT Instruments HT97U Rigid Clamp 10 to 1000 A AC

HT97U

HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs HTFLEX33 Offers

Record all parameters of voltage, current and power simultaneously in order to achieve an advanced mains monitoring as well as a full analysis of spikes and flickers in a simple and intuitive way.

Features

TRMS voltage measures (5 inputs)
TRMS current on phases and neutral (4inputs)
Active, reactive and apparent powers measures
Active, reactive and apparent energies measures
Power factors measure
Frequency measure
Max 251 selected parameters at the same time
Integrated period selectable from 1s to 60min
Harmonic analysis of voltage and current up to 49th component
Voltage anomalies (sags, swells) with 10ms resolution
Numerical and graphical (waveforms) visualization
Histogram visualization of harmonic analysis
Vectorial diagram of voltages and currents
Flicker analysis (Pst, Plt) in compliance to EN50160
Voltage unbalance in compliance to EN50160
Inrush currents measures
Predefined and customized recordings configurations
TFT colour display with "touch screen"
15Mbytes internal memory for recordings saving
Using of external compact flash and USB pen drives
USB interface for PC connection
Windows software for recordings analysis
Rechargeable Li-Ion battery and external AC/D adapter
Contextual help selectable on each screen
Virtual keyboard at display

Applications

Ideal for the following applications: Troubleshoot electrical problems and anomalies, Plant Maintenance and Electrical Services.

HT Instruments PQA823 Specifications

TRMS AC/DC Phase - Neutral/Phase - Ground Voltage, Single/Three Phase Systems
Display	320 x 240 graphical color TFT
Internal Memory	15 Mbytes
Range	2 to 600 V
Resolution	0.1 V
Accuracy	±(0.5%rdg + 2 dgt)
Input impedance	10 MΩ
TRMS AC/DC Phase - Phase Voltage, Three Phase Systems
Range	2 to 1000 V
Resolution	0.1 V
Accuracy	±(0.5% rdg + 2 dgt)
Input Impedance	10 MΩ
Phase - Neutral Voltage Anomalies, Single/Three Phase Systems
Range	2 to 600 V
Resolution	0.2 V
Accuracy	±(1.0% rdg + 2 dgt)
Time Resolution	10 ms
Phase - Phase Voltage Anomalies, Three Phase Systems
Range	2 to 1000 V
Resolution	0.2 V
Accuracy	±(1.0% rdg + 2 dgt)
Time Resolution	10 ms

Click here for complete specifications on the HT Instruments PQA823

What's included with the HT Instruments PQA823

Power Quality Analyzer and Energy Logger
Calibration Certificate
5 x Cables
5 x Alligator Clips
Flexible Clamp for AC Current
External Adapter AC/DC Recharging Battery
Li-ION Rechargeable Battery
Touch Pen
Windows Software + USB Cable
User Manual on CD-ROM
Quick Reference Guide
Hard Carrying Case

datasheet for the HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs, HTFLEX33 manual for the HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs, HTFLEX33

Accessories

Click on a category to view a selection of compatible accessories with the HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs, HTFLEX33.

Harness/Straps

HT Instruments SP-0400 Neck Straps SP-0400

Set of straps for use of meter on neck.

$59.00 USD

Learn More

Clamp-On CTs

HT Instruments HT903 External CTs Connection HT903

Accessory for the connection to external CTs for HT Instrument PQA's.

$1,575.00 USD

Learn More

HT Instruments HT98U Rigid Clamp, 1000 A DC HT98U

Rigid clamp for the HT Instruments PQAs. Features a 50 mm diameter.

$1,295.00 USD

Learn More

HT Instruments HT4005N Rigid Clamp, 50 to 100 AC HT4005N

Rigid clamp for the HT Instruments VEGA78. Measures 5 to 100 A AC with a 20 mm diameter.

$395.00 USD

Learn More

HT Instruments HP30C2 Rigid Clamp, 200-2000A AC HP30C2

Rigid clamp for the HT Instruments PQAs. Measures 200-2000A AC with a 70mm diameter.

$595.00 USD

Learn More

HT Instruments HT97U Rigid Clamp 10 to 1000 A AC HT97U

Rigid clamp for the HT Instruments PQAs. Features a 54 mm diameter.

$495.00 USD

Learn More
