Fluke 1736/B 3-Phase Power Logger-

Downloads: datasheet manual

Fluke 1736/B 3-Phase Power Logger

Model: 1736/B

Perform both basic power quality studies and energy studies with the Fluke 1736. This general purpose power logger allows you measure, capture and log all characteristics of electrical power and send back to your team through the Fluke Connect app.

2 to 3 Weeks

$4,499.99 USD

to your 1736/B


Need a quote?

Fluke 1736/B Offers

More visibility, reduced uncertainty and better power quality and energy consumption decisions . The Fluke 1736 Three-Phase Power Loggers built with Fluke Connect® mobile app and desktop software compatibility give you the data you need to make critical power quality and energy decisions in real-time. The ideal test tools for conducting energy studies and basic power quality logging, it automatically captures and logs over 500 power quality parameters so you have more visibility into the data you need to optimize system reliability and savings.

Features

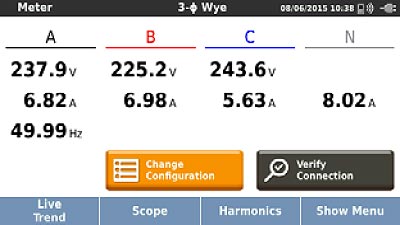

  • Automatically capture and log voltage, current, power, harmonics and associated power quality values
  • Fluke Connect® compatible*: View data locally on the instrument or via Fluke Connect mobile app and desktop software.
  • Convenient instrument powering: Power instrument directly from the measured circuit
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
  • Comprehensive logging: Store 20+ logging sessions. Values automatically logged. Review during logging/before downloading for real-time analysis.

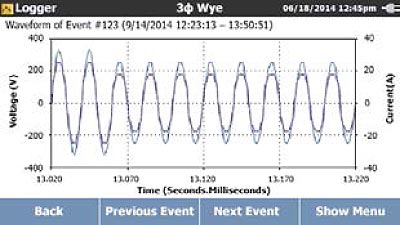

  • Capture dips, swells, and inrush currents: event waveform snapshot and high resolution RMS profile, date, timestamp to see root causes of PQ issues.

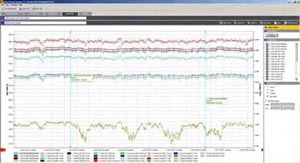

  • Energy Analyze Plus application software: get every detail of energy consumption and power quality state of health with automated reporting.

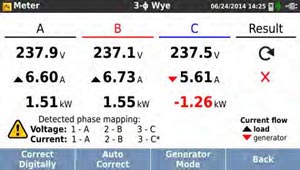

  • Optimized user interface: Get the right data with, graphical setup. Reduce uncertainty about your connections with intelligent verification function.
  • Complete "in-the-field" setup through the front panel or Fluke Connect App.

Applications

  • Load Studies
  • Energy Assessments
  • Harmonics Measurements
  • Solar Power
  • Voltage Events Capture
  • Great for Electrical Technicians, Electrical Contractors, and Energy Savings Consultants

Fluke 1736/B Specifications

Voltage Range 1000 V
Current Direct Input i17xx-flex 1500 12" 150A / 1500A
Current Direct Input i17xx-flex 3000 24" 300A / 3000A
Current Direct Input i17xx-flex 6000 36" 600A / 6000A
Current Direct Input i40s-EL clamp 4A / 40A
Frequency 42.5 Hz to 69 Hz
Auxillary Input ±10 V DC
Voltage Min/Max 1000 V
Current Min/Max Defined by accessory
THD on Voltage 1000%
THD on Current 1000%
Voltage Harmonics 2nd to 50th 1000 V
Current Harmonics 2nd to 50th Defined by accessory
Unbalance 100%
Click here for complete specifications on the Fluke 1736/B

What's included with the Fluke 1736/B

  • 1736B/B Power Energy Logger
  • Power Supply
  • Voltage Test Leads
  • Alligator Clips (4x)
  • Soft Case
  • Energy Analzye Software
  • WiFi Adapter
  • Line Cords
  • Color Coding Set
  • Documentation on USB Flash Drive
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

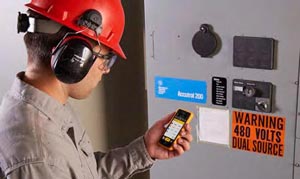

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 1736/B 3-Phase Power Logger.

-
Fluke I173X-FLEX1500 iFlex Flexible Current Probe 1500A, 12" I173X-FLEX1500
Expand the measurement range of your Fluke Energy Loggers to 1500 AC while providing measurement flexibility.
$179.99 USD

Learn More

-
Fluke I173X-FLEX6000/4PK iFlex Current Probe 6000A, 36", 4 Pack I173X-FLEX6000/4PK
Expand the measurement range of your Fluke Energy Loggers to 6000 AC while providing measurement flexibility.
$799.99 USD

Learn More

-
Fluke I173X-FLEX3000/4PK iFlex Current Probe 3000A, 24", 4 Pack I173X-FLEX3000/4PK
Expand the measurement range of your Fluke Energy Loggers to 3000 AC while providing measurement flexibility.
$669.99 USD

Learn More

-
Fluke I173X-FLEX1500/4PK iFlex Current Probe 1500A, 12", 4 Pack I173X-FLEX1500/4PK
Expand the measurement range of your Fluke Energy Loggers to 1500 AC while providing measurement flexibility.
$669.99 USD

Learn More

-
Fluke I173X-FLEX6000/3PK iFlex Flexible Current Probe 6000A, 36", 3 Pack I173X-FLEX6000/3PK
Expand the measurement range of your Fluke Energy Loggers to 6000 AC while providing measurement flexibility.
$599.99 USD

Learn More

-
Fluke I173X-FLEX3000/3PK iFlex Flexible Current Probe 3000A, 24", 3 Pack I173X-FLEX3000/3PK
Expand the measurement range of your Fluke Energy Loggers to 3000 AC while providing measurement flexibility.
$499.99 USD

Learn More

-
Fluke I173X-FLEX1500/3PK iFlex Flexible Current Probe 1500A, 12", 3 Pack I173X-FLEX1500/3PK
Expand the measurement range of your Fluke Energy Loggers to 1500 AC while providing measurement flexibility.
$499.99 USD

Learn More

-
Fluke I173X-FLEX6000 iFlex Flexible Current Probe 6000A, 36" I173X-FLEX6000
Expand the measurement range of your Fluke Energy Loggers to 6000 AC while providing measurement flexibility.
$199.99 USD

Learn More

-
Fluke I173X-FLEX3000 iFlex Flexible Current Probe 3000A, 24" I173X-FLEX3000
Expand the measurement range of your Fluke Energy Loggers to 3000 AC while providing measurement flexibility.
$199.99 USD

Learn More

-
Fluke MP1-MAGNET PROBE 1 Magnetic Probes for 4MM Banana, 4 Pack MP1-MAGNET PROBE 1
Magnetic probe tips for voltage test leads with 4 mm banana connector.
$99.99 USD

Learn More

-
Fluke 1736/UPGRADE Kit for the Fluke 1736 to 1738 1736/UPGRADE
The 1736 the upgrade kit allows users to fully upgrade their 1736 to a 1738 with all the functionality and accessories included with 1738.
$699.99 USD

Learn More

-
Fluke C173X Soft Case C173X
Soft shell carrying case for the Fluke 17XX Energy or Power Logger and accessories.
$129.99 USD

Learn More

-
Fluke I40S-EL3X/3PK Clamp-On Current Transformer, 3 Pack I40S-EL3X/3PK
Use for low current measurements with your Fluke Energy Loggers. Suitable for making measurements up to 40A.
$699.99 USD

Learn More

-
Fluke I40S-EL3X Clamp-On Current Transformer I40S-EL3X
Use for low current measurements with your Fluke Energy Loggers. Suitable for making measurements up to 40A.
$249.99 USD

Learn More

-
Fluke 173X ADPT Aux Input Adapter 173X ADPT
Adapter for Fluke 1736 and 1738 Power Loggers.
$129.99 USD

Learn More
