FLEX-CORE FCR1600/5-R411 Split-Core Current Transformer, Relay Class Revenue Grade, Current Ratio 1600:5

Model: FCR1600/5-R411

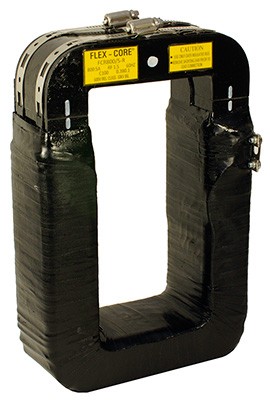

FLEX-CORE FCR1600/5-R411 Split-Core Current Transformer, Relay Class Revenue Grade, Current Ratio 1600:5-


Downloads: datasheet

FLEX-CORE FCR1600/5-R411 Split-Core Current Transformer, Relay Class Revenue Grade, Current Ratio 1600:5

Model: FCR1600/5-R411

These split core current transformers are designed for easy installation over a fully insulated bus bar or cable providing a precise representation of the primary current. They allow you to replace existing relay class current transformers without requiring disassembly of bus work. FLEX-CORE FCR1600/5-R411 has a relay class of C150.

These split core current transformers are designed for easy installation over a fully insulated bus bar or cable providing a precise representation of the primary current. They allow you to replace existing relay class current transformers without requiring disassembly of bus work. FLEX-CORE FCR1600/5-R411 has a relay class of C150.

Your Price $1103.00 USD
Availability 2 to 3 Weeks
Quantity

Flex-Core FCR1600/5-R411 Offers

These split core current transformers are designed for easy installation over busbar or cable to provide a precise representation of the primary current. There are solutions available for most commercially available meters and instrumentation.

Features

  • The FCR is made in the USA and rated for indoor use
  • Input from 50A - 5,000A and a 5A secondary

Applications

  • Watt Transducer
  • Demand Meter
  • Energy Management Systems
  • Current Transducer
  • Power Factor Meter
  • KWH Meter
  • Current Sensing Relays

Flex-Core FCR1600/5-R411 Specifications

Input Amps 1600A
Output Amps 5A
Relay Class C150
ANSI Metering Class at 60Hz B0.1; 0.3
B0.2: 0.3
B0.5: 0.3
B0.9: 0.6
Continuous Thermal Rating Factor @30°C 1.33
Insulation Class 0.6kV
Weight 40 lbs
Click here for complete specifications on the Flex-Core FCR1600/5-R411

What's included with the Flex-Core FCR1600/5-R411

  • FLEX-CORE FCR1600/5-R411 Split-Core Current Transformer, Relay Class Revenue Grade, Current Ratio 1600:5
  • Customer Reviews for the Flex-Core FCR1600/5-R411

    Ask a question about FLEX-CORE FCR1600/5-R411 Split-Core Current Transformer, Relay Class Revenue Grade, Current Ratio 1600:5

    comments powered by Disqus

    Flex-Core FCR1600/5-R411 Offers

    These split core current transformers are designed for easy installation over busbar or cable to provide a precise representation of the primary current. There are solutions available for most commercially available meters and instrumentation.

    Features

    • The FCR is made in the USA and rated for indoor use
    • Input from 50A - 5,000A and a 5A secondary

    Applications

    • Watt Transducer
    • Demand Meter
    • Energy Management Systems
    • Current Transducer
    • Power Factor Meter
    • KWH Meter
    • Current Sensing Relays

    Flex-Core FCR1600/5-R411 Specifications

    Input Amps 1600A
    Output Amps 5A
    Relay Class C150
    ANSI Metering Class at 60Hz B0.1; 0.3
    B0.2: 0.3
    B0.5: 0.3
    B0.9: 0.6
    Continuous Thermal Rating Factor @30°C 1.33
    Insulation Class 0.6kV
    Weight 40 lbs
    Click here for complete specifications on the Flex-Core FCR1600/5-R411
