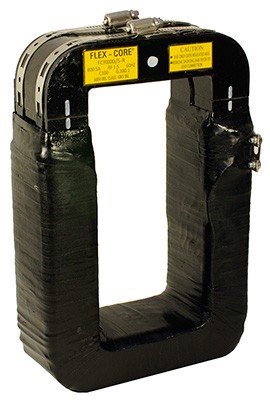

These split core current transformers are designed for easy installation over a fully insulated bus bar or cable providing a precise representation of the primary current. They allow you to replace existing relay class current transformers without requiring disassembly of bus work. FLEX-CORE FCR100/5-RZ has a relay class of C20.
These split core current transformers are designed for easy installation over a fully insulated bus bar or cable providing a precise representation of the primary current. They allow you to replace existing relay class current transformers without requiring disassembly of bus work. FLEX-CORE FCR100/5-RZ has a relay class of C20.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.
These split core current transformers are designed for easy installation over busbar or cable to provide a precise representation of the primary current. There are solutions available for most commercially available meters and instrumentation.
Features
Applications
| Input Amps | 100A |
| Output Amps | 5A |
| Relay Class | C20 |
| Continuous Thermal Rating Factor @30°C | 2.0 |
| Insulation Class | 0.6kV |
| Weight | 55 lbs |
| Input Amps | 100A |
| Output Amps | 5A |
| Relay Class | C20 |
| Continuous Thermal Rating Factor @30°C | 2.0 |
| Insulation Class | 0.6kV |
| Weight | 55 lbs |
