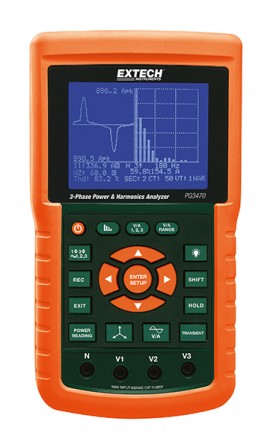

Extech PQ3470 3-Phase Power/Harmonics Analyzer/Data Logger

Model: PQ3470 | UPC: 793950334706

Extech PQ3470 3-Phase Power/Harmonics Analyzer/Data Logger-


Downloads: datasheet manual

Extech PQ3470 3-Phase Power/Harmonics Analyzer/Data Logger

Model: PQ3470

Data logging power and harmonics analyzer provides full system analysis with up to 35 parameters on a large dot-matrix, numerical, backlit LCD and logs up to 30,000 readings on a removable SD memory card. Current transformers sold separately.

Data logging power and harmonics analyzer provides full system analysis with up to 35 parameters on a large dot-matrix, numerical, backlit LCD and logs up to 30,000 readings on a removable SD memory card. Current transformers sold separately.

This product has been discontinued. Contact us for more information.


Extech PQ3470 Offers

Features

  • Large dot-matrix, sun-readable, graphical, backlit LCD
  • Full system analysis with up to 35 parameters
  • Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • On-screen Harmonics display (1 to 50th order)
  • Simultaneous display of Harmonics and Waveform
  • Display of Waveform with peak values
  • Analysis of Total Harmonic Distortion (THD)
  • Graphic Phase diagram with 3-Phase system parameters
  • 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
  • Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
  • Log up to 30,000 readings on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)
  • Captured measurements can be imported directly into Excel via the SD memory card
  • Built-in clock and calendar
  • Easy to use on-screen menu
  • Easy to hold rugged over molded housing
  • Select 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)

Extech PQ3470 Specifications

 RangeBasic Accuracy
ACV (True rms)600.0V±(0.5%rdg+0.5V)
Active Power (MW)9.999MW±(1.0%rdg+0.008MW)
Apparent Power (MVA)9.999MVA±(1.0%rdg+0.008MVA)
Reactive Power (MVAR)9.999MVAR±(1.0%rdg+0.008MVAR)
Power Factor0.00 to 1.00±0.04
Frequency Range45Hz to 65Hz±0.1Hz
Phase-180° to +180.0° ±1°
Current Clamp input200mV, 300mV, 500mV; 1V 2V 3V; user-selectable±(0.5%rdg+5d)
Active Power Energy (MWH)0.0kWh to 9.999MWH±(2.0%rdg+0.008MWH)
Apparent Power Energy (MVAH)0.0KVAh to 9.999MVAH±(2.0%rdg+0.008MVAH)
Reactive Power Energy (MVARH)0.0kVARh to 9.999MVARH±(2.0%rdg+0.008MVARH)
Datalogging30000 readings (2GB SD memory Card)-
CE/CAT ratingCE/CAT III-600V-
Dimensions8.86 x 4.92 x 2.52" (225 x 125 x 64mm)-
WeightMeter: 2.2lbs (1010g)-
Click here for complete specifications on the Extech PQ3470

What's included with the Extech PQ3470

  • 4 Voltage Leads with Alligator Clips
  • SD card
  • Universal AC Adapter
  • Case
  • 8x AA batteries

Accessories

Click on a category to view a selection of compatible accessories with the Extech PQ3470 3-Phase Power/Harmonics Analyzer/Data Logger.

Extech PQ1000 Voltage Test Leads, Set of 4 PQ1000
The PQ1000 is a CAT IV Test Lead Accessory Kit for the PQ3400 power analyzer series. Includes a set of 4, 10ft test leads with shrouded banana plugs on both ends, test probes, alligator clips, and long reach spring loaded clips.
$148.49 USD

was $164.99


Learn More

Extech PQ34-12 Current Clamp Probes, 1200A, Set of 3 PQ34-12
Set of 3 1200A current clamps with 2" (50mm) jaw opening. For use with Extech PQ3450 and PQ3470 power analyzers.
$638.10 USD

was $709.00


Learn More

Extech PQ34-30 Current Flexible Clamp Probes, 3000A, Set of 3 PQ34-30
PQ34-30 is a set of 3000-Amp flexible current probes for PQ3450/PQ3470 power quality analyzers. 24 in. (600 mm) for wrapping around bus bars and wire bundles. Switch between 3 ranges; 3000-amp, 300-amp, 30-amp.
$809.10 USD

was $899.00


Learn More

Extech PQ34-2 Current Clamp Probes, 200A, Set of 3 PQ34-2
The PQ34-2 is a set of 200 Amp current clamp probes. Use with the Extech PQ3450 and PQ3470 analyzers. Featuring a 0.8 in. (19 mm) jaw size. Product comes with three current clamp probes and a one year warranty.
$458.99 USD

was $509.99


Learn More

Customer Reviews for the Extech PQ3470

Ask a question about Extech PQ3470 3-Phase Power/Harmonics Analyzer/Data Logger
