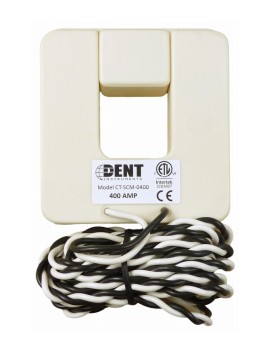

DENT CT-SCM-0400-U-7M Medium Split Core Current Transformer

Model: CT-SCM-0400-U-7M

DENT CT-SCM-0400-U-7M Medium Split Core Current Transformer-


Downloads: datasheet

DENT CT-SCM-0400-U-7M Medium Split Core Current Transformer

Model: CT-SCM-0400-U-7M

The medium split-core current transformer is safely and easily installed over existing electrical power lines without disconnecting the lines or interrupting service and provides a linear output voltage that is directly proportional to the input current.

The medium split-core current transformer is safely and easily installed over existing electrical power lines without disconnecting the lines or interrupting service and provides a linear output voltage that is directly proportional to the input current.

Your Price $85.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your CT-SCM-0400-U-7M

Add In-House Traceable Calibration to your CT-SCM-0400-U-7M


Dent CT-SCM-0400-U-7M Specifications

Window Size 1.25" (3.2 mm)
Current Range 8 - 520 A AC
Output 333 mV at rated current
Ratio Error <1% at rated current (typical)
Phase Error <2° at rated current (typical)
Case Material Epoxy encapsulated housing
Leads Twisted pair, 20 AWG
Operating Temperature -4 to 131°F (-20 to 55°C)
Working Voltage 600 VAC, Category III
Dielectric Strength 5000 VAC around case
600 V rated leads
Certification Conforms to: UL STD 61010-1 EN 60044-1
Certified to: CAN/CSA STD C22.2 No. 61010-1
Click here for complete specifications on the Dent CT-SCM-0400-U-7M

What's included with the Dent CT-SCM-0400-U-7M

  • DENT CT-SCM-0400-U-7M Medium Split Core Current Transformer
  • Customer Reviews for the Dent CT-SCM-0400-U-7M

    Ask a question about DENT CT-SCM-0400-U-7M Medium Split Core Current Transformer

    comments powered by Disqus

    Dent CT-SCM-0400-U-7M Specifications

    Window Size 1.25" (3.2 mm)
    Current Range 8 - 520 A AC
    Output 333 mV at rated current
    Ratio Error <1% at rated current (typical)
    Phase Error <2° at rated current (typical)
    Case Material Epoxy encapsulated housing
    Leads Twisted pair, 20 AWG
    Operating Temperature -4 to 131°F (-20 to 55°C)
    Working Voltage 600 VAC, Category III
    Dielectric Strength 5000 VAC around case
    600 V rated leads
    Certification Conforms to: UL STD 61010-1 EN 60044-1
    Certified to: CAN/CSA STD C22.2 No. 61010-1
    Click here for complete specifications on the Dent CT-SCM-0400-U-7M

    What's included with the Dent CT-SCM-0400-U-7M

  • DENT CT-SCM-0400-U-7M Medium Split Core Current Transformer
  • Ask a question about DENT CT-SCM-0400-U-7M Medium Split Core Current Transformer

    Customer Reviews for the Dent CT-SCM-0400-U-7M
