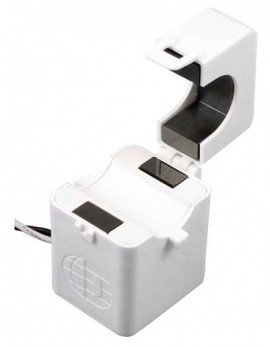

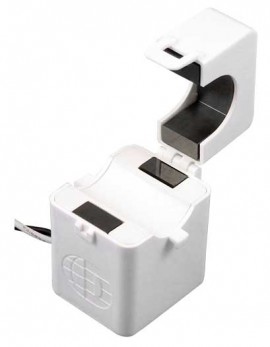

DENT CT-HSC-050-U-7M Mini Hinged Current Transformer, 50 A

Model: CT-HSC-050-U-7M

DENT CT-HSC-050-U-7M Mini Hinged Current Transformer, 50 A-


Downloads: datasheet

DENT CT-HSC-050-U-7M Mini Hinged Current Transformer, 50 A

Model: CT-HSC-050-U-7M

The mini hinged current transformer is ideal where space is limited such as when metering multiple loads within a panel board and has high accuracy over a wide dynamic range with an excellent phase shift.

The mini hinged current transformer is ideal where space is limited such as when metering multiple loads within a panel board and has high accuracy over a wide dynamic range with an excellent phase shift.

Your Price $35.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your CT-HSC-050-U-7M

Add In-House Traceable Calibration to your CT-HSC-050-U-7M


Dent CT-HSC-050-U-7M Specifications

Window Size 0.4" (10 mm)
Current Range 0.25 - 80 A AC
Output 333 mV @ 50 A AC
6.66 mV/A AC
Ratio Error <0.5% from 0.25 to 80 A AC (typical)
Phase Error <1.5° from 1 to 80 A AC
<2° From 0.25 to 1 A AC
Case Material White Nylon, UL 94 V-0
Leads 600 V, 20 gage
Working Temperature 5 to 140°F (-15 to 60°C)
Working Voltage 600 VAC, Category III
Dielectric Strength 3520 VAC for 1 minute
Certification Conforms to: UL STD 61010-1
Certified to: CAN/CSA STD C22.2 No. 61010-1
Click here for complete specifications on the Dent CT-HSC-050-U-7M

What's included with the Dent CT-HSC-050-U-7M

  • DENT CT-HSC-050-U-7M Mini Hinged Current Transformer, 50 A
  • Customer Reviews for the Dent CT-HSC-050-U-7M

    Ask a question about DENT CT-HSC-050-U-7M Mini Hinged Current Transformer, 50 A

    comments powered by Disqus

    Dent CT-HSC-050-U-7M Specifications

    Window Size 0.4" (10 mm)
    Current Range 0.25 - 80 A AC
    Output 333 mV @ 50 A AC
    6.66 mV/A AC
    Ratio Error <0.5% from 0.25 to 80 A AC (typical)
    Phase Error <1.5° from 1 to 80 A AC
    <2° From 0.25 to 1 A AC
    Case Material White Nylon, UL 94 V-0
    Leads 600 V, 20 gage
    Working Temperature 5 to 140°F (-15 to 60°C)
    Working Voltage 600 VAC, Category III
    Dielectric Strength 3520 VAC for 1 minute
    Certification Conforms to: UL STD 61010-1
    Certified to: CAN/CSA STD C22.2 No. 61010-1
    Click here for complete specifications on the Dent CT-HSC-050-U-7M

    What's included with the Dent CT-HSC-050-U-7M

  • DENT CT-HSC-050-U-7M Mini Hinged Current Transformer, 50 A
  • Ask a question about DENT CT-HSC-050-U-7M Mini Hinged Current Transformer, 50 A

    Customer Reviews for the Dent CT-HSC-050-U-7M
