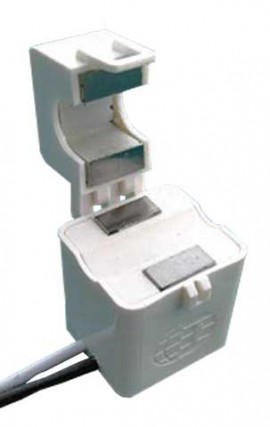

Dent CT-HSC-020-B Mini Hinged Current Transformer with Banana Plugs, 20A

Model: CT-HSC-020-B

Dent CT-HSC-020-B Mini Hinged Current Transformer with Banana Plugs, 20A-


Downloads: datasheet

Dent CT-HSC-020-B Mini Hinged Current Transformer with Banana Plugs, 20A

Model: CT-HSC-020-B

Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 20A amp rating.

Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 20A amp rating.

This product has been discontinued. Click here for the replacement model(s).


Dent CT-HSC-020-B Offers

Features

  • 0.4" (10mm) opening
  • High accuracy of <0.5% over a wide dynamic range
  • Excellent phase shift
  • Ideal where space is limited
  • Compatible with all Dent power meters including ElitePro Series and PowerScout Series instruments
  • cURus
  • CE

Applications

  • Current measurement
  • Energy metering
  • Load surveys
  • Demand metering
  • Energy research
  • Submetering

Dent CT-HSC-020-B Specifications

Key Specifications
Window Size 0.4" (10 mm)
Current Range 0.25 to 40 A AC
Output 333 mV @ 20 A AC
16.65 mV/A AC
Ratio Error <0.5% from 0.25 to 40 A AC (typical)
Phase Error <1.5° from 1 to 40 A AC
<2° from 0.25 to 1 A AC
Electrical
Output 333 mV @ 20 A
Wire Polarity White = Hi, positive (+)
Black = Low, negative (-)
Phasing Orientation Arrow on case points toward load
Frequency Range 50 to 400 Hz
Mechanical
Case Material White Nylon, UL 94 V‐0
Leads 8' (2.4m), 600V, 20 gauge
Working Temperature 5 to 140°F (‐15 to 60°C)
Safety
Working Voltage 600 VAC, Category III
Dielectric Strength 3520 VAC for 1 minute
Certification Designed to: UL STD 61010‐1 CAN/CSA STD C22.2 No. 61010‐1
Click here for complete specifications on the Dent CT-HSC-020-B

What's included with the Dent CT-HSC-020-B

  • Dent CT-HSC-020-B Mini Hinged Current Transformer with Banana Plugs, 20A
  • Customer Reviews for the Dent CT-HSC-020-B
