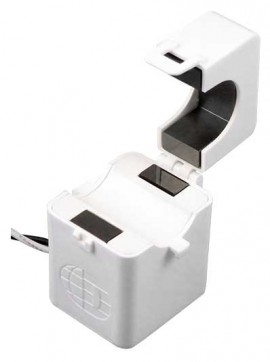

DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads

Model: CT-HMC-0200-U-7M | Order No: CT-HMC-200-U-7M

DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads-


Downloads: datasheet

DENT CT-HMC-200-U-7M Midi Hinged Current Transformer, 200 A, 7 m leads

Model: CT-HMC-0200-U-7M | Order No: CT-HMC-200-U-7M

The midi hinged current transformer is for use with current measurement, energy metering, load surveys, demand metering, energy research, and sub-metering and has high performance, medium amperage, and 7 m leads.

The midi hinged current transformer is for use with current measurement, energy metering, load surveys, demand metering, energy research, and sub-metering and has high performance, medium amperage, and 7 m leads.

Your Price $80.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your CT-HMC-200-U-7M

Add In-House Traceable Calibration to your CT-HMC-200-U-7M


Dent CT-HMC-0200-U-7M Specifications

Window Size 1" (25 mm)
Current Range 1 - 300 A AC
Output 333 mV @ 200 A AC
1.67 mV/A AC
Ratio Error <1% from 1 to 300 A AC (typical)
Phase Error <0.5° from 1 to 300 A AC
Case Material White Nylon, UL 94 V-0
Leads 600 V, 22 gage
Operating Temperature 5 to 140°F (-15 to 60°C)
Working Temperature -4 to 185°F (-20 to 85°C)
Working Voltage 600 VAC, Category III
Dielectric Strength 5200 VAC for 1 minute
Safety Standards UL STD 61010-1 CAN/CSA STD C22.2 No. 61010-1
Click here for complete specifications on the Dent CT-HMC-0200-U-7M

What's included with the Dent CT-HMC-0200-U-7M
