DENT CT-HMC-100-U Midi Hinged Current Transformer, 100 A

Model: CT-HMC-100-U

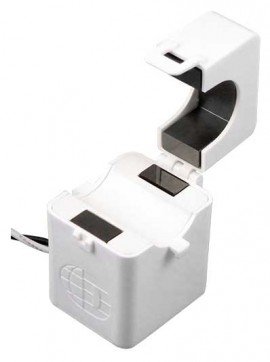

DENT CT-HMC-100-U Midi Hinged Current Transformer, 100 A-


Downloads: datasheet

DENT CT-HMC-100-U Midi Hinged Current Transformer, 100 A

Model: CT-HMC-100-U

The midi hinged current transformer is for use with current measurement, energy metering, load surveys, demand metering, energy research, and sub-metering and has high performance and medium amperage.

The midi hinged current transformer is for use with current measurement, energy metering, load surveys, demand metering, energy research, and sub-metering and has high performance and medium amperage.

Your Price $70.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your CT-HMC-100-U

Add In-House Traceable Calibration to your CT-HMC-100-U


Dent CT-HMC-100-U Specifications

Window Size 1" (25 mm)
Current Range 1 - 200 A AC
Output 333 mV @ 100 A AC
3.33 mV/A AC
Ratio Error <0.3% from 1 to 200 A AC (typical)
Phase Error <0.5° from 1 to 200 A AC
Case Material White Nylon, UL 94 V-0
Leads 600 V, 22 gage
Operating Temperature 5 to 140°F (-15 to 60°C)
Working Temperature -4 to 185°F (-20 to 85°C)
Working Voltage 600 VAC, Category III
Dielectric Strength 5200 VAC for 1 minute
Safety Standards UL STD 61010-1 CAN/CSA STD C22.2 No. 61010-1
Click here for complete specifications on the Dent CT-HMC-100-U

What's included with the Dent CT-HMC-100-U

  • DENT CT-HMC-100-U Midi Hinged Current Transformer, 100 A
  • Customer Reviews for the Dent CT-HMC-100-U

    Ask a question about DENT CT-HMC-100-U Midi Hinged Current Transformer, 100 A

    comments powered by Disqus

    Dent CT-HMC-100-U Specifications

    Window Size 1" (25 mm)
    Current Range 1 - 200 A AC
    Output 333 mV @ 100 A AC
    3.33 mV/A AC
    Ratio Error <0.3% from 1 to 200 A AC (typical)
    Phase Error <0.5° from 1 to 200 A AC
    Case Material White Nylon, UL 94 V-0
    Leads 600 V, 22 gage
    Operating Temperature 5 to 140°F (-15 to 60°C)
    Working Temperature -4 to 185°F (-20 to 85°C)
    Working Voltage 600 VAC, Category III
    Dielectric Strength 5200 VAC for 1 minute
    Safety Standards UL STD 61010-1 CAN/CSA STD C22.2 No. 61010-1
    Click here for complete specifications on the Dent CT-HMC-100-U

    What's included with the Dent CT-HMC-100-U

  • DENT CT-HMC-100-U Midi Hinged Current Transformer, 100 A
