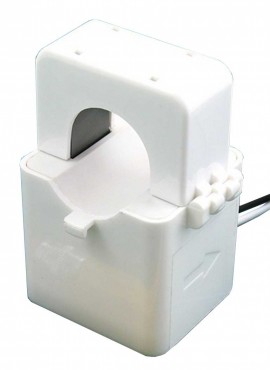

Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 100A amp rating.
Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 100A amp rating.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
Applications
| Key Specifications | |
| Window Size | 25 mm (1.0") |
| Current Range | 1 to 200 A AC |
| Output | 333 mV @ 100 A AC 3.33 mV/A AC |
| Ratio Error | <0.3% from 1.0 A to 200 A AC (typical) |
| Phase Error | <0.5° from 1.0 A to 200 A AC |
| Electrical | |
| Output | 333 mV @ 100 A |
| Wire Polarity | White = Hi, positive (+) Black = Low, negative (-) |
| Phasing Orientation | Arrow on case points toward load |
| Frequency Range | 50 to 400 Hz |
| Mechanical | |
| Case Material | White Nylon, UL 94 V‐0 |
| Leads | 8'(2.4 m), 600V, 22 gauge |
| Operating Temperature | 5 to 140°F (-15 to 60°C) |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Safety | |
| Working Voltage | 600 VAC, Category III |
| Dielectric Strength | 5200 VAC for 1 minute |
| Safety Standards | UL STD 61010-1 CAN/CSA STD C22.2 No. 61010-1 |
| Key Specifications | |
| Window Size | 25 mm (1.0") |
| Current Range | 1 to 200 A AC |
| Output | 333 mV @ 100 A AC 3.33 mV/A AC |
| Ratio Error | <0.3% from 1.0 A to 200 A AC (typical) |
| Phase Error | <0.5° from 1.0 A to 200 A AC |
| Electrical | |
| Output | 333 mV @ 100 A |
| Wire Polarity | White = Hi, positive (+) Black = Low, negative (-) |
| Phasing Orientation | Arrow on case points toward load |
| Frequency Range | 50 to 400 Hz |
| Mechanical | |
| Case Material | White Nylon, UL 94 V‐0 |
| Leads | 8'(2.4 m), 600V, 22 gauge |
| Operating Temperature | 5 to 140°F (-15 to 60°C) |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Safety | |
| Working Voltage | 600 VAC, Category III |
| Dielectric Strength | 5200 VAC for 1 minute |
| Safety Standards | UL STD 61010-1 CAN/CSA STD C22.2 No. 61010-1 |
