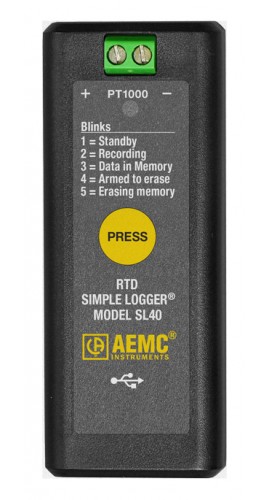

AEMC SL40 Simple Logger Data Logger, -148 to 1022°F, RTD

Model: SL40 | Order No: 2156.40 | UPC: 685338140613

AEMC SL40 Simple Logger Data Logger, -148 to 1022&deg;F, RTD-

Downloads:

AEMC SL40 Simple Logger Data Logger, -148 to 1022°F, RTD

Model: SL40 | Order No: 2156.40

Provides the ability to begin recording with only the need to configure the length of time for the recording, along with simple button operation. Features a temperature range of -148 to 1022°F (-70C to 550°C), and a resolution of 0.1°C.

Sale Price	$103.55 USD
Regular Price	$109.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your SL40 Simple Logger Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIRE1) for only $170.00 USD

Traceable Calibration Certificate for your SL40 Simple Logger Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIRE1) for only $170.00 USD

AEMC Instruments SL40 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input it configured to measure temperature from two-wire 1k Platinum RTDs, and is facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

AEMC Instruments SL40 Specifications

Range	-148 to 1022°F (-70C to 550°C)
Resolution	0.1°C
Accuracy	±(1% of reading + 1.8°F [1°C])
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other power source, when powered by the USB the battery is automatically disconnected)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW

Click here for complete specifications on the AEMC Instruments SL40

What's included with the AEMC Instruments SL40

Simple Logger Data Logger
Micro-B USB Cable
Data Analysis Software
