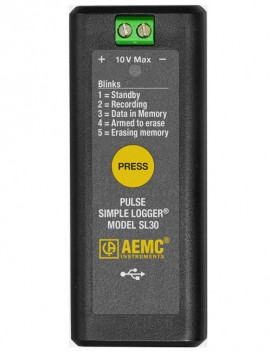

AEMC SL30 Simple Logger Data Logger, 0 to 5 VDC, Pulse

Model: SL30 | Order No: 2156.30 | UPC: 685338140590

Downloads:

AEMC SL30 Simple Logger Data Logger, 0 to 5 VDC, Pulse

Model: SL30 | Order No: 2156.30

Provides the ability to begin recording with only the need to configure the length of time for the recording, along with simple button operation. Features a pulse range of 0 to 5 V_DC.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Portable Power Dataloggers category for similar products.

Or let's do a search and help you find what you need:

AEMC Instruments SL30 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 0 to 5 VDC facilitated by two screw terminals
Sample rate is 8/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

AEMC Instruments SL30 Specifications

Range	Contact closure, 0 to 5 VDC
Maximum Input Voltage	10 V_DC
Input Impedance	800 KΩ
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other power source, when powered by the USB the battery is automatically disconnected)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW

Click here for complete specifications on the AEMC Instruments SL30

What's included with the AEMC Instruments SL30

Data Logger
Micro-B USB Cable
Data Analysis Software
