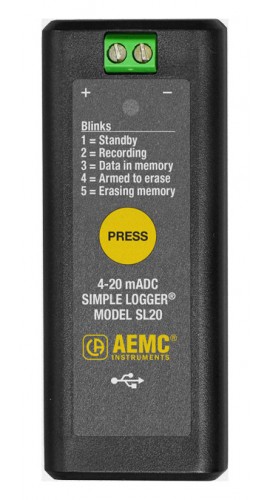

AEMC SL20 Simple Logger Data Logger, 4 to 20 mADC, Current

Model: SL20 | Order No: 2156.20 | UPC: 685338140583

Downloads:

AEMC SL20 Simple Logger Data Logger, 4 to 20 mADC, Current

Model: SL20 | Order No: 2156.20

Provides the ability to begin recording with only the need to configure the length of time for the recording, along with simple button operation. Features a current range of 4 to 20 mADC, and a resolution of 0.02 mA.

Sale Price	$189.05 USD
Regular Price	$199.00 USD
Availability	1 Week1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your SL20 Simple Logger Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIRE1) for only $170.00 USD

Traceable Calibration Certificate for your SL20 Simple Logger Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIRE1) for only $170.00 USD

AEMC Instruments SL20 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 4 to 20 mADC facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

AEMC Instruments SL20 Specifications

Range	±20 mA
Resolution	0.02 mA
Accuracy	±(0.5% of reading + 0.1 mA)
Maximum Input Voltage	3 V_DC
Input Impedance	49 Ω
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other power source, when powered by the USB the battery is automatically disconnected)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW

Click here for complete specifications on the AEMC Instruments SL20

What's included with the AEMC Instruments SL20

Simple Logger Data Logger
Micro-B USB Cable
Data Analysis Software

Ask a question about AEMC SL20 Simple Logger Data Logger, 4 to 20 mADC, Current

Customer Reviews for the AEMC Instruments SL20

Description ➕➖

AEMC Instruments SL20 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 4 to 20 mADC facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

Specifications ➕➖

AEMC Instruments SL20 Specifications

Range	±20 mA
Resolution	0.02 mA
Accuracy	±(0.5% of reading + 0.1 mA)
Maximum Input Voltage	3 V_DC
Input Impedance	49 Ω
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other power source, when powered by the USB the battery is automatically disconnected)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW
