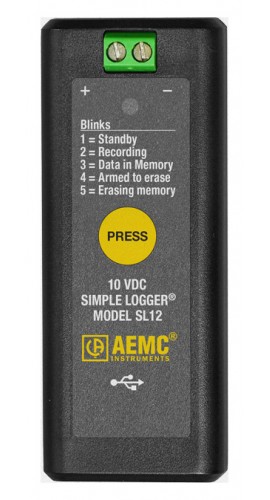

AEMC SL12 Simple Logger Data Logger, 10 VDC, Voltage

Model: SL12 | Order No: 2156.12 | UPC: 685338140569

Downloads:

AEMC SL12 Simple Logger Data Logger, 10 VDC, Voltage

Model: SL12 | Order No: 2156.12

Provides the ability to begin recording with only the need to configure the length of time for the recording, along with simple button operation. Features a voltage range of ±10 VDC, and a resolution of 10 mV.

Sale Price	$189.05 USD
Regular Price	$199.00 USD
Availability	1 to 2 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your SL12 Simple Logger Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIRE1) for only $170.00 USD

Traceable Calibration Certificate for your SL12 Simple Logger Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIRE1) for only $170.00 USD

AEMC Instruments SL12 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 0 to 10 VDC facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

AEMC Instruments SL12 Specifications

Range	±10 V_DC
Resolution	10 mV
Accuracy	±(0.5% of reading + 50 mV)
Maximum Input Voltage	60 V_DC
Input Impedance	800 KΩ
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other USB power source)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW

Click here for complete specifications on the AEMC Instruments SL12

What's included with the AEMC Instruments SL12

Data Logger
Micro-B USB Cable
Data Analysis Software

Ask a question about AEMC SL12 Simple Logger Data Logger, 10 VDC, Voltage

Customer Reviews for the AEMC Instruments SL12

Description ➕➖

AEMC Instruments SL12 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 0 to 10 VDC facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

Specifications ➕➖

AEMC Instruments SL12 Specifications

Range	±10 V_DC
Resolution	10 mV
Accuracy	±(0.5% of reading + 50 mV)
Maximum Input Voltage	60 V_DC
Input Impedance	800 KΩ
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other USB power source)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW
