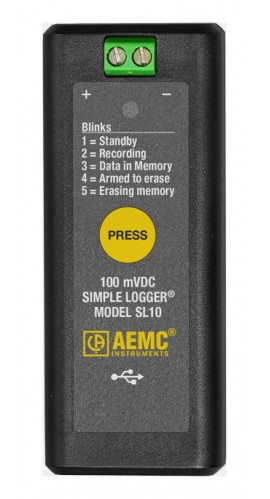

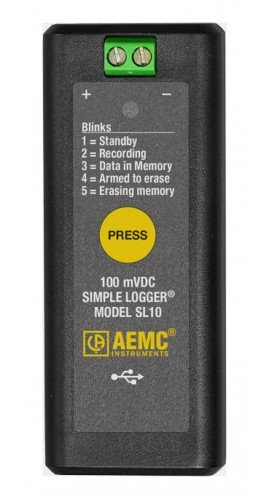

AEMC SL10 Simple Logger Data Logger, 100 mVDC, Voltage

Model: SL10 | Order No: 2156.10 | UPC: 685338140545

Downloads:

AEMC SL10 Simple Logger Data Logger, 100 mVDC, Voltage

Model: SL10 | Order No: 2156.10

Provides the ability to begin recording with only the need to configure the length of time for the recording, along with simple button operation. Features a voltage range of ±100 mVDC, and a resolution of 0.1 mV.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Current Dataloggers category for similar products.

Or let's do a search and help you find what you need:

AEMC Instruments SL10 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 0 to 100 mVDC facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

AEMC Instruments SL10 Specifications

Range	±100 mV_DC
Resolution	0.1 mV
Accuracy	±(0.5% of reading + 0.5 mV)
Maximum Input Voltage	60 V_DC
Input Impedance	800 KΩ
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other USB power source)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW

Click here for complete specifications on the AEMC Instruments SL10

What's included with the AEMC Instruments SL10

Data Logger
Micro-B USB Cable
Data Analysis Software

Ask a question about AEMC SL10 Simple Logger Data Logger, 100 mVDC, Voltage

Customer Reviews for the AEMC Instruments SL10

Description ➕➖

AEMC Instruments SL10 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 0 to 100 mVDC facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

Specifications ➕➖

AEMC Instruments SL10 Specifications

Range	±100 mV_DC
Resolution	0.1 mV
Accuracy	±(0.5% of reading + 0.5 mV)
Maximum Input Voltage	60 V_DC
Input Impedance	800 KΩ
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other USB power source)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW
