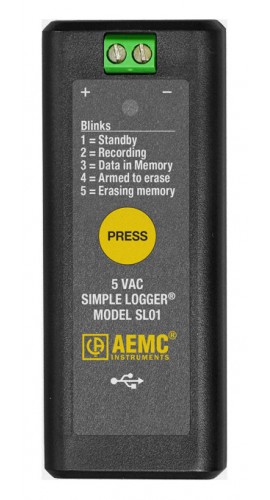

AEMC SL01 Simple Logger Data Logger, 5 VAC, Voltage

Model: SL01 | Order No: 2156.01 | UPC: 685338140538

Downloads:

AEMC SL01 Simple Logger Data Logger, 5 VAC, Voltage

Model: SL01 | Order No: 2156.01

Provides the ability to begin recording with only the need to configure the length of time for the recording, along with simple button operation. Features a voltage range of 0 to 5 VAC, and a resolution of 10 mV.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Current Dataloggers category for similar products.

Or let's do a search and help you find what you need:

AEMC Instruments SL01 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 0 to 5 VAC facilitated by two screw terminals
Sample rate is 1024/sec with a storage rate of once per second of the RMS of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status

Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing

AEMC Instruments SL01 Specifications

Range	0 to 5 V_AC
Resolution	10 mV
Accuracy	±(0.5% of reading + 50 mV)
Maximum Input Voltage	60 V_DC
Input Impedance	800 KΩ
Power Source	Internal: 2 x 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other USB power source)
Power Consumption	Internal power: 1 mA (average) External power: 100 mW

Click here for complete specifications on the AEMC Instruments SL01

What's included with the AEMC Instruments SL01

Data Logger
Micro-B USB Cable
Data Analysis Software
