2-Channel, 4 to 20mA DC, Current, DataView Software.
2-Channel, 4 to 20mA DC, Current, DataView Software.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Portable Power Dataloggers category for similar products.
Or let's do a search and help you find what you need:

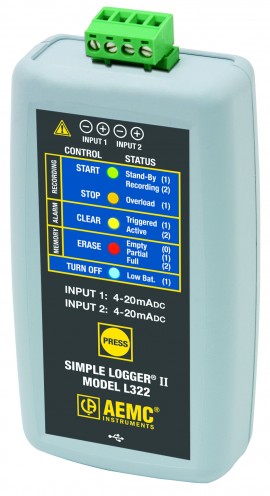

The AEMC L322 Simple Logger II is a two channel 4-20mADC current data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode (XRM®) and delayed start time are just two of the many application friendly features.
The AEMC L322 Simple Logger II records DC current at user selectable rates from 125 minutes to 1 day. Current can be measured up to 25mADC with 0.1mA resolution. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.
Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instruments internal memory to the computer for analysis
Applications
| Electrical | |
| Channels | Two |
| Input Connection | Detachable terminal strip |
| Measurement Range | 0 to 25mAdc |
| Resolution | 0.1mA |
| Accuracy (DC and 50/60Hz) | 0 to 1mA: unspecified 1mA to 30mA: ±(0.25% of Reading + 100µA) |
| Sample Rate | 8 samples taken at storage interval |
| Storage Rate | Programmable from 125ms to 1 day |
| Storage Modes | Start/Stop, FIFO and Extended Recording Mode (XRM) |
| Recording Length | 15 minutes to 8 weeks, programmable using DataView |
| Memory | 240,000 measurements (512KB) The recorded data is stored in non-volatile memory and will be retained even if the battery is low or removed. |
| Communication | USB 2.0 optically isolated |
| Power Source | 2 x 1.5V AA-cell alkaline batteries |
| Battery Life | 100 hours to >45 days (dependent on sample rate and recording length) |
| Mechanical | |
| Dimensions | 5.43 x 2.75 x 1.28" (138 x 70 x 32mm) |
| Weight (with battery) | 6.4 oz (181 grams) |
| Case | UL94-V0 |
| Vibration | IEC 68-2-6 (1.5mm, 10 to 55Hz) |
| Shock | IEC 68-2-27 (30G) |
| Drop | IEC 68-2-32 (1m) |
| Electrical | |
| Channels | Two |
| Input Connection | Detachable terminal strip |
| Measurement Range | 0 to 25mAdc |
| Resolution | 0.1mA |
| Accuracy (DC and 50/60Hz) | 0 to 1mA: unspecified 1mA to 30mA: ±(0.25% of Reading + 100µA) |
| Sample Rate | 8 samples taken at storage interval |
| Storage Rate | Programmable from 125ms to 1 day |
| Storage Modes | Start/Stop, FIFO and Extended Recording Mode (XRM) |
| Recording Length | 15 minutes to 8 weeks, programmable using DataView |
| Memory | 240,000 measurements (512KB) The recorded data is stored in non-volatile memory and will be retained even if the battery is low or removed. |
| Communication | USB 2.0 optically isolated |
| Power Source | 2 x 1.5V AA-cell alkaline batteries |
| Battery Life | 100 hours to >45 days (dependent on sample rate and recording length) |
| Mechanical | |
| Dimensions | 5.43 x 2.75 x 1.28" (138 x 70 x 32mm) |
| Weight (with battery) | 6.4 oz (181 grams) |
| Case | UL94-V0 |
| Vibration | IEC 68-2-6 (1.5mm, 10 to 55Hz) |
| Shock | IEC 68-2-27 (30G) |
| Drop | IEC 68-2-32 (1m) |
