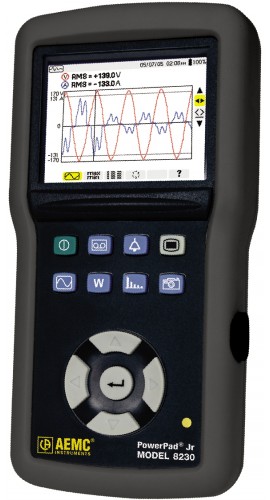

The AEMC 8320 PowerPad® Jr. is a single-phase power quality analyzer that is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single or three-phase balanced load networks.
Features
Applications
| Electrical | |
| Voltage (TRMS) | Phase-to-Phase: 660V Phase-to-Neutral: 600V |
| Current (TRMS) | MN Clamp: 5mA to 100mA/120A or 2 to 240A MR Clamp: 10 to 1000A AC, 10 to 1400A DC SR Clamp: 3 to 1200A AmpFlex: 10 to 6500A |
| Frequency (Hz) | 40 to 70Hz |
| Other Measurements | kW, kVAR, PF, DPF, kWh, kVARh, kVAh, K-Factor, Flicker, Harmonic Phase Shift, Phase Rotation |
| Harmonics | THD-R, THD-F, V, A, VA 1st to 50th, Direction, Sequence |
| Sampling Frequency | 256 Samples/cycle |
| Data Storage | 1.5MB partitioned for waveforms, alarms, and trend recording |
| Power Source | Six NiMH AA rechargeable battery pack AC Supply: 120/230V AC (50/60Hz) |
| Battery Life | ≥ 8 hours with display on ≥ 40 hours with display off (recording mode) |
| Mechanical | |
| Communication Port | Optically isolated USB |
| Display | 1/4 VGA (320 x 240) color LCD |
| Dimensions | 8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm) |
| Weight | 1.9 lbs (0.88kg) |
| Safety Rating | EN 61010, 600V Cat. III, IP 54, Pollution Degree 2 |
