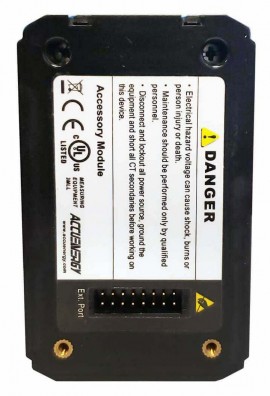

Accuenergy AXM-WEB Ethernet Module for Acuvim II

Model: AXM-WEB | Order No: AXM-WEB-PUSH

Accuenergy AXM-WEB Ethernet Module for Acuvim II-


Downloads: datasheet manual

Accuenergy AXM-WEB Ethernet Module for Acuvim II

Model: AXM-WEB | Order No: AXM-WEB-PUSH

Provides an Ethernet connection to the Acuvim II Series power meters via Modbus-TCP/IP, HTTP Post, HTTPS Post, FTP, SMTP for e-mail, and SNTP time synchronization. Features 4GB onboard memory with 15-second interval data logging capabilities, and industry-leading 100ms response rate via ModbusTCP/IP protocol.

Provides an Ethernet connection to the Acuvim II Series power meters via Modbus-TCP/IP, HTTP Post, HTTPS Post, FTP, SMTP for e-mail, and SNTP time synchronization. Features 4GB onboard memory with 15-second interval data logging capabilities, and industry-leading 100ms response rate via ModbusTCP/IP protocol.

Sale Price $179.40 USD
Regular Price $195.00 USD
Availability 12 in Stock
Quantity

Accuenergy AXM-WEB Offers

Features
  • Industry leading 100ms response rate via Modbus-TCP/IP protocol
  • Secure HTTPS data encryption to cloud server
  • Metering data backup log to avoid data loss during network downtime
  • Two-tier user management system to provide efficient monitoring and access
  • Support common protocols Modbus-TCP/IP, SMTP, HTTP/HTTPS Post, FTP & SNTP
  • 4GB onboard memory with 15-second interval data logging capabilities
  • SSL encrypted webserver plus TLS 1.2 compliance for industry-leading cybersecurity standard
  • Built-in sFTP server for data-log storage and retrieval
  • Graphical display of historical data trends on all parameters for analysis

Acuvim II Ethernet Module

Connect Acuvim II Series power and energy meter to the AXM-WEB module for Ethernet capabilities.

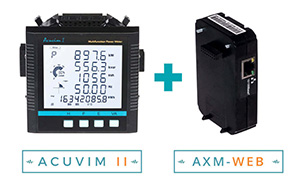

Add AXM-WEB to Acuvim II power meter

Give Acuvim II energy meter Ethernet option with the AXM-WEB communication module. Enables Modbus-TCP/IP, SMTP, HTTPS Post & SNTP communication.

Learn more about Acuvim II

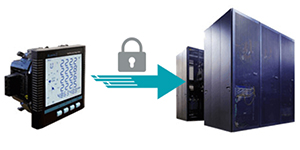

Transmit fast encrypted energy data to server

Protect sensitive data communication to only allow authorized access to owners and managers. with response time of 100ms. Secure HTTPS data encryption safeguards your usage.

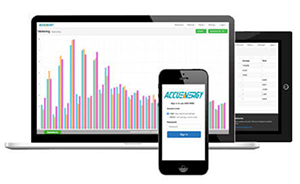

Cross-platform support for various devices

Access and monitor real-time data from power meters on the desktop, laptop, tablet or mobile devices.


AXM-WEB features

Fast. Reliable. Secure.

Class-leading security

Fully encrypted communication between customer and meter to ensure all energy consumption data are secured to user credentials. HTTPS encryption is the accepted protection standard for all web interface and main data transmission protocol HTTPS post.

Reliable backup data logs

Prevent data outages from network downtime or any other possible communication issues. AXM-WEB pushes data via HTTP post, HTTPS post, or FTP to your server or energy management system (EMS) server provider. Data are logged locally on the module until all data are successfully posted to the server to ensure data integrity.

Fast Modbus-TCP/IP response time: 100ms

AXM-WEB module provides a fast communication protocol within 100ms that enables Acuvim II series multifunction power meter to make real-time updates to key parameters such as line and phase voltage, current and power readings via industry de-facto Modbus-TCP/IP.

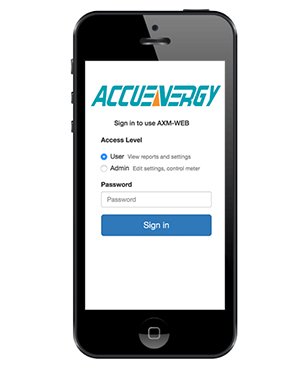

Out-of-box two-level user control

Administration level management

Robust administrative settings that give you full control over how the application will be implemented within your project.

  1. Manage metering settings for voltage wiring, current wiring, real-time reading options and more.
  2. Configure communication for network, E-mail, SNTP, HTTP/HTTPS/FTP Post
  3. Reset data collection
  4. Get the latest firmware upgrades
User level monitoring

Easy accessible real-time data for energy managers to monitor and determine power and energy integrity across your project application without compromising unauthorized security.


Easy-to-use web interface

24/7 data monitoring

Monitor metering data anytime, anywhere with our user-friendly web interface. Accessible on any browser client and a web-enabled device such as mobile, desktop or tablet no matter where you are.

Time sensitive

Monitor real-time power metering data and system performance to ensure critical decision-making are made in time crucial environments.

Energy management

Access full reports to help manage power (kW) and energy (kWh) metering usage, peak current (amp) & power demand cycles, and power quality harmonics to optimize your systems energy efficiency.

Application support

Professional and friendly support is available to guarantee your project is on schedule and never compromised.

Accuenergy AXM-WEB Specifications

Communication LAN RJ45 10/100M Ethernet
Protocols Modbus-TCP/IP, SNMP V2, DNP 3.0 V2, SMTP, NTP, HTTP post, HTTPs post, FTP post, sFTP server, HTTPs webserver
Memory 4GB eMMC
Data Logging 15 seconds to 1 day interval
Click here for complete specifications on the Accuenergy AXM-WEB

What's included with the Accuenergy AXM-WEB

  • Accuenergy AXM-WEB Ethernet Module for Acuvim II
  • Customer Reviews for the Accuenergy AXM-WEB

    Ask a question about Accuenergy AXM-WEB Ethernet Module for Acuvim II
