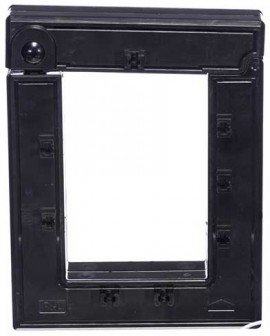

Accuenergy AcuCT-5170R-1000:5A Split Core Current Transformer, 5.1 x 7" 1000 A:5 A

Model: AcuCT-5170R-1000:5A

Accuenergy AcuCT-5170R-1000:5A Split Core Current Transformer, 5.1 x 7" 1000 A:5 A-


Downloads: datasheet

Accuenergy AcuCT-5170R-1000:5A Split Core Current Transformer, 5.1 x 7" 1000 A:5 A

Model: AcuCT-5170R-1000:5A

Revenue grade, split-core current transformer features a window size of 5.1 x 7", current input of 1000 A and output of 5 A.

Revenue grade, split-core current transformer features a window size of 5.1 x 7", current input of 1000 A and output of 5 A.

Sale Price $317.40 USD
Regular Price $345.00 USD
Availability 2 to 3 Weeks
Quantity

Accuenergy AcuCT 5170R Series Offers

These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • Simple hinged installation
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Push-open mechanism makes the installation quick and simple
  • Multiple voltage or current secondary output options
  • Multiple mounting options with included accessories

Accuenergy AcuCT-5170R-1000:5A Specifications

Input Range 5A to 1000A
Output Option 5A
Window Size 5.1 x 7" (130 x 180mm)
Exterior Dimensions 8.3 x 10.2 x 1.8" (210 x 260 x 45mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-5170R-1000:5A

What's included with the Accuenergy AcuCT-5170R-1000:5A
