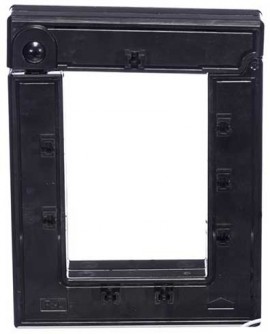

Accuenergy AcuCT-4161R-2000:200mA Split Core Current Transformer, 4.1 x 6.1", 2000 A:200 mA

Model: AcuCT-4161R-2000:200mA

Accuenergy AcuCT-4161R-2000:200mA Split Core Current Transformer, 4.1 x 6.1", 2000 A:200 mA-


Downloads: datasheet

Accuenergy AcuCT-4161R-2000:200mA Split Core Current Transformer, 4.1 x 6.1", 2000 A:200 mA

Model: AcuCT-4161R-2000:200mA

Revenue grade, split-core current transformer features a window size of 4.1 x 6.1", current input of 2000 A and output of 200 mA.

Revenue grade, split-core current transformer features a window size of 4.1 x 6.1", current input of 2000 A and output of 200 mA.

Sale Price $220.80 USD
Regular Price $240.00 USD
Availability 2 to 3 Weeks
Quantity

Accuenergy AcuCT 4161R Series Offers

These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • Simple hinged installation
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Push-open mechanism makes the installation quick and simple
  • Multiple voltage or current secondary output options
  • Multiple mounting options with included accessories

Accuenergy AcuCT-4161R-2000:200mA Specifications

Input Range 5A to 2000A
Output Option 200mA
Window Size 4.1 x 6.1" (105 x 155mm)
Exterior Dimensions 7.3 x 9.3 x 1.8" (185 x 235 x 45mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-4161R-2000:200mA

What's included with the Accuenergy AcuCT-4161R-2000:200mA

  • Accuenergy AcuCT-4161R-2000:200mA Split Core Current Transformer, 4.1 x 6.1", 2000 A:200 mA
  • Customer Reviews for the Accuenergy AcuCT-4161R-2000:200mA

    Ask a question about Accuenergy AcuCT-4161R-2000:200mA Split Core Current Transformer, 4.1 x 6.1", 2000 A:200 mA

    comments powered by Disqus

    Accuenergy AcuCT 4161R Series Offers

    These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.

    Features

    • Simple hinged installation
    • Can be installed on cable, bus and panel
    • Listed to UL2808, 61010-1 and CSA 22.2
    • Revenue grade accuracy meets IEC61000-1 class 0.5
    • Push-open mechanism makes the installation quick and simple
    • Multiple voltage or current secondary output options
    • Multiple mounting options with included accessories

    Accuenergy AcuCT-4161R-2000:200mA Specifications

    Input Range 5A to 2000A
    Output Option 200mA
    Window Size 4.1 x 6.1" (105 x 155mm)
    Exterior Dimensions 7.3 x 9.3 x 1.8" (185 x 235 x 45mm)
    Accuracy  IEC 60044-1 0.5s class
    Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
    Form Factor Rectangle Press-Open CTs
    Click here for complete specifications on the Accuenergy AcuCT-4161R-2000:200mA

    What's included with the Accuenergy AcuCT-4161R-2000:200mA

  • Accuenergy AcuCT-4161R-2000:200mA Split Core Current Transformer, 4.1 x 6.1", 2000 A:200 mA
