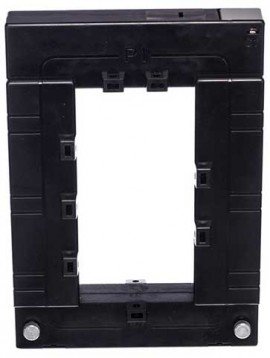

Accuenergy AcuCT-3163-5000:1 Split Core Current Transformer, 3.15 x 6.3", 5000 A:1 A

Model: AcuCT-3163-5000:1

Accuenergy AcuCT-3163-5000:1 Split Core Current Transformer, 3.15 x 6.3", 5000 A:1 A-


Downloads: datasheet

Accuenergy AcuCT-3163-5000:1 Split Core Current Transformer, 3.15 x 6.3", 5000 A:1 A

Model: AcuCT-3163-5000:1

Split core current transformer features a window size of 3.15 x 6.3quot;, current input of 5000 A and output of 1 A.

Split core current transformer features a window size of 3.15 x 6.3quot;, current input of 5000 A and output of 1 A.

Sale Price $149.22 USD
Regular Price $162.20 USD
Availability 2 to 3 Weeks
Quantity

Accuenergy AcuCT 3163 Series Offers

Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • 0.5% accuracy from 10%-120% of rated current
  • Industrial standard 5A secondary output
  • UL recognized
  • Safe and easy installations
  • Multiple installation mechanisms
  • Includes mounting accessories

Accuenergy AcuCT-3163-5000:1 Specifications

Input Ranges 5A to 5000A
Rated Output Options 1A
Window Size 3.15 x 6.3" (80 x 160mm)
Exterior Dimensions 6.93 x 9.72 x 2.76" (176 x 247 x 70mm)
Accuracy  0.5%
Standard/Certifications UR, CE, RoHS
Form Factor Rectangle Split Core
Click here for complete specifications on the Accuenergy AcuCT-3163-5000:1

What's included with the Accuenergy AcuCT-3163-5000:1

  • Accuenergy AcuCT-3163-5000:1 Split Core Current Transformer, 3.15 x 6.3", 5000 A:1 A
  • Customer Reviews for the Accuenergy AcuCT-3163-5000:1

    Ask a question about Accuenergy AcuCT-3163-5000:1 Split Core Current Transformer, 3.15 x 6.3", 5000 A:1 A

    comments powered by Disqus

    Accuenergy AcuCT 3163 Series Offers

    Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

    Features

    • 0.5% accuracy from 10%-120% of rated current
    • Industrial standard 5A secondary output
    • UL recognized
    • Safe and easy installations
    • Multiple installation mechanisms
    • Includes mounting accessories

    Accuenergy AcuCT-3163-5000:1 Specifications

    Input Ranges 5A to 5000A
    Rated Output Options 1A
    Window Size 3.15 x 6.3" (80 x 160mm)
    Exterior Dimensions 6.93 x 9.72 x 2.76" (176 x 247 x 70mm)
    Accuracy  0.5%
    Standard/Certifications UR, CE, RoHS
    Form Factor Rectangle Split Core
    Click here for complete specifications on the Accuenergy AcuCT-3163-5000:1

    What's included with the Accuenergy AcuCT-3163-5000:1

  • Accuenergy AcuCT-3163-5000:1 Split Core Current Transformer, 3.15 x 6.3", 5000 A:1 A
  • Ask a question about Accuenergy AcuCT-3163-5000:1 Split Core Current Transformer, 3.15 x 6.3", 5000 A:1 A

    Customer Reviews for the Accuenergy AcuCT-3163-5000:1
