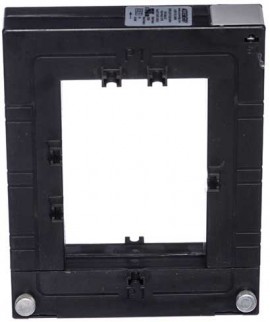

Accuenergy AcuCT-3147-1000:5 Split Core Current Transformer,3.15 x 4.72quot;, 1000 A:5 A

Model: AcuCT-3147-1000:5

Accuenergy AcuCT-3147-1000:5 Split Core Current Transformer,3.15 x 4.72quot;, 1000 A:5 A-


Downloads: datasheet

Accuenergy AcuCT-3147-1000:5 Split Core Current Transformer,3.15 x 4.72quot;, 1000 A:5 A

Model: AcuCT-3147-1000:5

Split core current transformer features a window size of 3.15 x 4.72quot;, current input of 1000 A and output of 5 A.

Split core current transformer features a window size of 3.15 x 4.72quot;, current input of 1000 A and output of 5 A.

Sale Price $90.21 USD
Regular Price $98.05 USD
Availability 1 Week
Quantity

Accuenergy AcuCT 3147 Series Offers

Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • 0.5% accuracy from 10%-120% of rated current
  • Industrial standard 5A secondary output
  • UL recognized
  • Safe and easy installations
  • Multiple installation mechanisms
  • Includes mounting accessories

Accuenergy AcuCT-3147-1000:5 Specifications

Input Ranges 5A to 1000A
Rated Output Options 5A
Window Size 3.15 x 4.72" (80 x 120mm)
Exterior Dimensions 5.67 x 7.28 x 1.97" (144 x 185 x 50mm)
Accuracy  0.5%
Standard/Certifications UR, CE, RoHS
Form Factor Rectangle Split Core
Click here for complete specifications on the Accuenergy AcuCT-3147-1000:5

What's included with the Accuenergy AcuCT-3147-1000:5

  • Accuenergy AcuCT-3147-1000:5 Split Core Current Transformer,3.15 x 4.72quot;, 1000 A:5 A
