Accuenergy AcuCT-200R-800:80mA Split Core Current Transformer, 2 x 2", 800 A:80 mA

Model: AcuCT-200R-800:80mA

Accuenergy AcuCT-200R-800:80mA Split Core Current Transformer, 2 x 2", 800 A:80 mA-


Downloads: datasheet

Accuenergy AcuCT-200R-800:80mA Split Core Current Transformer, 2 x 2", 800 A:80 mA

Model: AcuCT-200R-800:80mA

Revenue grade, split-core current transformer features a window size of 2 x 2", current input of 800 A and output of 80 mA.

Revenue grade, split-core current transformer features a window size of 2 x 2", current input of 800 A and output of 80 mA.

Sale Price $81.88 USD
Regular Price $89.00 USD
Availability 2 to 3 Weeks
Quantity

Accuenergy AcuCT 200R Series Offers

These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.

Features

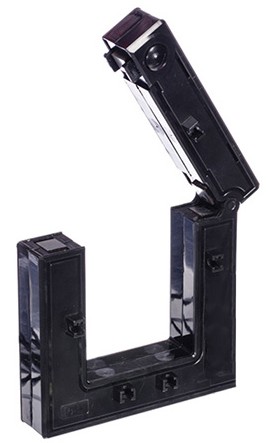

  • Simple hinged installation
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Push-open mechanism makes the installation quick and simple
  • Multiple voltage or current secondary output options
  • Multiple mounting options with included accessories

Accuenergy AcuCT-200R-800:80mA Specifications

Input Range 5A to 800A
Output Option 80mA
Window Size 2 x 2" (51 x 51mm)
Exterior Dimensions 4.4 x 4.4 x 1.25" (111 x 111 x 32mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Square Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-200R-800:80mA

What's included with the Accuenergy AcuCT-200R-800:80mA

  • Accuenergy AcuCT-200R-800:80mA Split Core Current Transformer, 2 x 2", 800 A:80 mA
  • Customer Reviews for the Accuenergy AcuCT-200R-800:80mA

    Ask a question about Accuenergy AcuCT-200R-800:80mA Split Core Current Transformer, 2 x 2", 800 A:80 mA

    comments powered by Disqus

    Accuenergy AcuCT 200R Series Offers

    These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.

    Features

    • Simple hinged installation
    • Can be installed on cable, bus and panel
    • Listed to UL2808, 61010-1 and CSA 22.2
    • Revenue grade accuracy meets IEC61000-1 class 0.5
    • Push-open mechanism makes the installation quick and simple
    • Multiple voltage or current secondary output options
    • Multiple mounting options with included accessories

    Accuenergy AcuCT-200R-800:80mA Specifications

    Input Range 5A to 800A
    Output Option 80mA
    Window Size 2 x 2" (51 x 51mm)
    Exterior Dimensions 4.4 x 4.4 x 1.25" (111 x 111 x 32mm)
    Accuracy  IEC 60044-1 0.5s class
    Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
    Form Factor Square Press-Open CTs
    Click here for complete specifications on the Accuenergy AcuCT-200R-800:80mA

    What's included with the Accuenergy AcuCT-200R-800:80mA

  • Accuenergy AcuCT-200R-800:80mA Split Core Current Transformer, 2 x 2", 800 A:80 mA
  • Ask a question about Accuenergy AcuCT-200R-800:80mA Split Core Current Transformer, 2 x 2", 800 A:80 mA

    Customer Reviews for the Accuenergy AcuCT-200R-800:80mA
