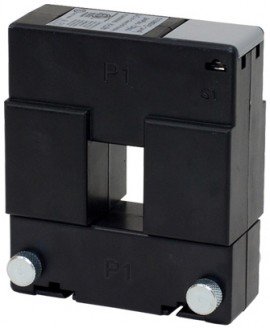

Accuenergy AcuCT-0812-400:5 Split Core Current Transformer, 0.83 x 1.22", 400 A:5 A

Model: AcuCT-0812-400:5

Accuenergy AcuCT-0812-400:5 Split Core Current Transformer, 0.83 x 1.22", 400 A:5 A-


Downloads: datasheet

Accuenergy AcuCT-0812-400:5 Split Core Current Transformer, 0.83 x 1.22", 400 A:5 A

Model: AcuCT-0812-400:5

Split core current transformer features a window size of 0.83 x 1.22", current input of 400 A and output of 5 A.

Split core current transformer features a window size of 0.83 x 1.22", current input of 400 A and output of 5 A.

Sale Price $49.31 USD
Regular Price $53.60 USD
Availability 4 to 5 Weeks
Quantity

Accuenergy AcuCT-0812-400:5 Offers

Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • 0.5% accuracy from 10 to 120% of rated current
  • Industrial standard 5 A secondary output
  • UL recognized
  • Safe and easy installations
  • Multiple installation mechanisms

Accuenergy AcuCT-0812-400:5 Specifications

Input Ranges 5A to 400A
Rated Output Options 5A
Window Size 0.83 x 1.22" (21 x 31mm)
Exterior Dimensions 3.5 x 4.13 x 1.57" (89 x 105 x 40mm)
Accuracy  1%
Standard/Certifications UR, CE, RoHS
Form Factor Rectangle Split Core
Click here for complete specifications on the Accuenergy AcuCT-0812-400:5

What's included with the Accuenergy AcuCT-0812-400:5

  • AcuCT-0812-400:5 Split Core Current Transformer
  • Mounting Accessories
