Plug n' Play Power Metering Solutions

Pre-installed, pre-wired and pre-configured power meter provides a perfect solution for retrofit projects where metering space is not pre-designed in an electrical distribution panel.

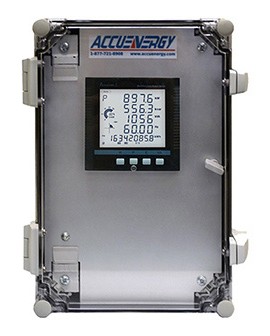

AcuPanel 9104X Key Features

• Factory pre-wired for fast, reliable install
• Factory pre-configuration eliminates meter programming on-site
• Required accessory components all pre-installed
• Self-powered panel does not require separate power supply
• Waterproof plastic NEMA 4X (outdoor) enclosure
• Two pluggable pre-cut holes allow for wires to be fed through the panel without any additional modifications being needed
• Compatible with a variety of flexible Rogowski coil current transformers (CTs are required for the proper operation of this unit). Refer to our CT configurator.

Acuvim IIR Multifunction Power Meter

High performance multifunction power meter with AXM-WEB-PUSH expansion module is the ideal choice for the monitoring and controlling of power distribution systems.

Acuvim IIR Key Features

• Real time metering of 400 power and energy parameters, including
• Voltage V1, V2, V3, Vlnavg, V12, V23, V31, Vllavg
• Current I1, I2, I3, In, Iavg
• Power P1, P2, P3, Psum
• Reactive Power Q1, Q2, Q3, Qsum
• Apparent Power S1, S2, S3, Ssum
• Frequency F
• Power Factor PF1, PF2, PF3, PF
• Energy Ep_imp, Ep_exp, Ep_total, Ep_net, Epa_imp, Epa_exp, Epb_imp_Epb_exp, Epc_imp, Epc_exp
• Reactive Energy Eq_imp, Eq_exp, Eq_total, Eq_net, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp
• Apparent Energy Es, Esa, Esb, Esc
• Demand Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_I2, Dmd_I3
• Load Features
• Four Quadrant Powers
• Revenue grade ANSI C12.20 class 0.2 & IEC 62053-22 class 0.2s
• Built-in DNP 3.0 Over IP, Modbus-TCP/IP, HTTP/HTTPs Webserver, HTTP/HTTPs Push, FTP Post, SMTP Email, SNMP V3, and sFTP Server
• Onboard memory size of 4GB

Benefits

• Saves cost on installation and parts
• Save premium time
• Avoids frustrating wiring mistakes
• Clear easy-to-read labels
• Plug n' play usability
