Accuenergy 9104X-IIR-5A-P3-WEB-PUSH Pre-Wired Panel Enclosure with Data Logging, WEB-PUSH module, 5 A, 480 Vac

Model: AcuPanel 9104X-IIR-5A-P3-WEB-PUSH | Order No: 9104X-IIR-5A-P3-WEB-PUSH

Accuenergy 9104X-IIR-5A-P3-WEB-PUSH Pre-Wired Panel Enclosure with Data Logging, WEB-PUSH module, 5 A, 480 Vac-


Downloads: datasheet

Accuenergy 9104X-IIR-5A-P3-WEB-PUSH Pre-Wired Panel Enclosure with Data Logging, WEB-PUSH module, 5 A, 480 Vac

Model: AcuPanel 9104X-IIR-5A-P3-WEB-PUSH | Order No: 9104X-IIR-5A-P3-WEB-PUSH

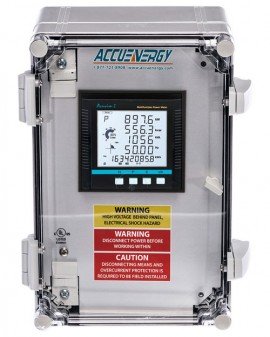

Pre-wired panel enclosure provides an all-in-one plug n' play energy metering solution. This kit includes NEM A 4X rated waterproof polycarbonate enclosure, Acuvim IIR data logging revenue-grade power and energy meter, AXM-WEB-PUSH expansion module, and 480 V AC power supply.

Pre-wired panel enclosure provides an all-in-one plug n' play energy metering solution. This kit includes NEM A 4X rated waterproof polycarbonate enclosure, Acuvim IIR data logging revenue-grade power and energy meter, AXM-WEB-PUSH expansion module, and 480 V AC power supply.

Sale Price $1292.60 USD
Regular Price $1405.00 USD
Availability 2 to 3 Weeks
Quantity

Plug n' Play Power Metering Solutions

Pre-installed, pre-wired and pre-configured power meter provides a perfect solution for retrofit projects where metering space is not pre-designed in an electrical distribution panel.

AcuPanel 9104X Key Features

  • Factory pre-wired for fast, reliable install
  • Factory pre-configuration eliminates meter programming on-site
  • Required accessory components all pre-installed
  • Self-powered panel does not require separate power supply
  • Waterproof plastic NEMA 4X (outdoor) enclosure
  • Two pluggable pre-cut holes allow for wires to be fed through the panel without any additional modifications being needed
  • Compatible with a wide variety of current transformers (CTs are required for the proper operation of this unit). Refer to our CT configurator.

Acuvim IIR Multifunction Power Meter

High performance multifunction power meter with AXM-WEB-PUSH expansion module is the ideal choice for the monitoring and controlling of power distribution systems.

Acuvim IIR Key Features

  • Real time metering of 400 power and energy parameters, including
  • Voltage V1, V2, V3, Vlnavg, V12, V23, V31, Vllavg
  • Current I1, I2, I3, In, Iavg
  • Power P1, P2, P3, Psum
  • Reactive Power Q1, Q2, Q3, Qsum
  • Apparent Power S1, S2, S3, Ssum
  • Frequency F
  • Power Factor PF1, PF2, PF3, PF
  • Energy Ep_imp, Ep_exp, Ep_total, Ep_net, Epa_imp, Epa_exp, Epb_imp_Epb_exp, Epc_imp, Epc_exp
  • Reactive Energy Eq_imp, Eq_exp, Eq_total, Eq_net, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp
  • Apparent Energy Es, Esa, Esb, Esc
  • Demand Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_I2, Dmd_I3
  • Load Features
  • Four Quadrant Powers
  • Revenue grade ANSI C12.20 class 0.2 & IEC 62053-22 class 0.2s
  • Built-in DNP 3.0 Over IP, Modbus-TCP/IP, HTTP/HTTPs Webserver, HTTP/HTTPs Push, FTP Post, SMTP Email, SNMP V3, and sFTP Server
  • Onboard memory size of 4GB

Benefits

  • Saves cost on installation and parts
  • Save premium time
  • Avoids frustrating wiring mistakes
  • Clear easy-to-read labels
  • Plug n' play usability

Accuenergy AcuPanel 9104X-IIR-5A-P3-WEB-PUSH Specifications

Voltage Range 10V to 1000kV
Current Range 5mA to 50000A
Power Range -9999MW to 9999MW
Reactive Power Range -9999Mvar to 9999Mvar
Apparent Power Range 0 to 9999MVA
Power Demand Range -9999MW to 9999MW
Reactive Power Demand Range -9999Mvar to 9999Mvar
Apparent Power Demand Range 0 to 9999MVA
Power Factor Range -1.000 to 1.000
Frequency Range 45.00 to 65.00Hz (50 or 60Hz type); 300.00Hz to 500.00Hz (400Hz type)
Energy Range 0 to 99999999.9kWh
Reactive Energy Range 0 to 99999999.9kvarh
Apparent Energy Range 0 to 99999999.9kVAh
Phase Angle Range 0.0° to 359.9°
Unbalance Factor Range 0.0% to 100.0%
Current Input 5A or 1A nominal
Onboard Memory 4GB
Communication DNP 3.0 Over IP, Modbus-TCP/IP, HTTP/HTTPs Webserver, HTTP/HTTPs Push, FTP Post, SMTP Email, SNMP V3, sFTP Server
NEMA Rating NEMA 4X
Power Supply 480 VAC
Dimensions 7.88 x 11.81 x 7.34" (200 x 300 x 186.5 mm)
Weight 8 lb
Click here for complete specifications on the Accuenergy AcuPanel 9104X-IIR-5A-P3-WEB-PUSH

What's included with the Accuenergy AcuPanel 9104X-IIR-5A-P3-WEB-PUSH

  • AcuPanel 9104X with integrated Acuvim IIR Power and Energy Meter
  • Manual
  • 5-year Warranty
