Model: EF003 | Order No: E-TPM 003
The Efergy Elite Classic is a compact, easy to install and easy to use device that will help you understand domestic electricity consumption. The monitor shows your energy usage and cost in real-time. Wireless and portable, you can walk around the house and switch things on and off.
This product has been discontinued. Click here for the replacement model(s).

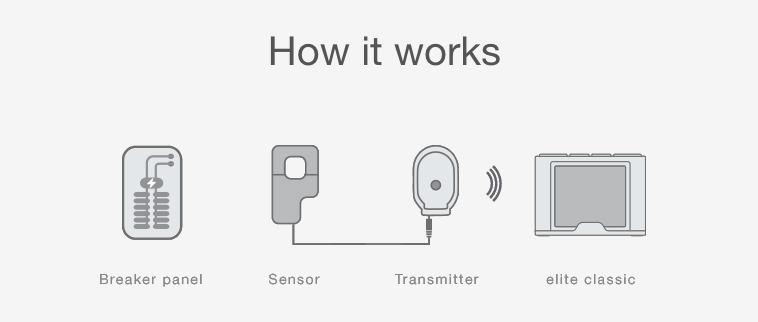

The sensor clips on the power supply cable (phase) we want to monitor and with its jackplug, connects to one of the available ports of the transmitter. The sensor inductively measures the current passing through the wire and transfers these information to the transmitter, which are then transmitted wirelessly to the energy monitor’s display for processing and viewing.

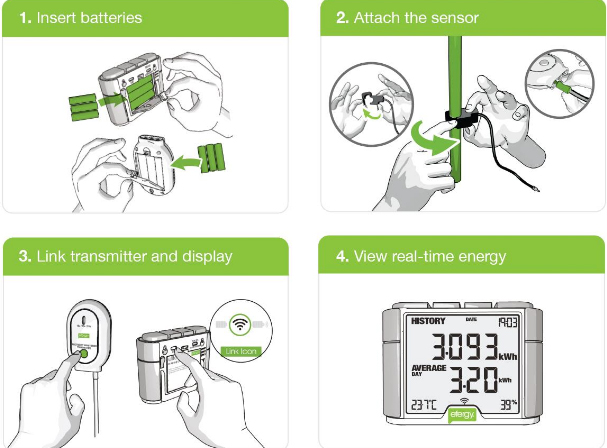

Easy Installation in 4 steps
1. Locate your breaker panel feed cable and clip the CT sensor to the live wire of the feed cable. IMPORTANT: EFERGY RECOMMENDS THAT INSTALLATION IS CARRIED OUT BY A QUALIFIED ELECTRICIAN
2. Insert the 3 x AA batteries into the transmitters and then plug the CT sensor into the transmitters
3. Insert 3 x AA batteries into the display, press and hold the link button until the 4 dashes flash on the screen. Then press once the link button on the transmitter to complete the pairing process
4. Complete the desired settings of your monitor, e.g. time, date, voltage, currency etc and start watching how you consume electricity
|Transmission Time||10sec (default) / 15sec / 20sec|
|Sensor Voltage Range||110 – 400V|
|Measuring Current||50mA – 90A|
|Multi-Currency||€, £, $, cP, RKr/td>|
|Display Power||3 x AA alkaline batteries|
|Transmitter Power||3 x AA alkaline batteries|
