24in RoCoil Flexible (Rogowski) Current Transformers. 5 to 5000A, Unterminated.
24in RoCoil Flexible (Rogowski) Current Transformers. 5 to 5000A, Unterminated.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.
Not what you're looking for? Let’s do a search and help you find what you need.
TheDENT RoCoil™Current Transformers have been designed for accurate non?intrusivemeasurement of AC current, pulsed DC or distorted waveforms. Thistype ofsensormay be used to measure AC current over a wide dynamic range and from40Hz to 5 kHz.Note: The RoCoil™may require use ofintegrator/ ampli?er. See also RoCoil mV™.

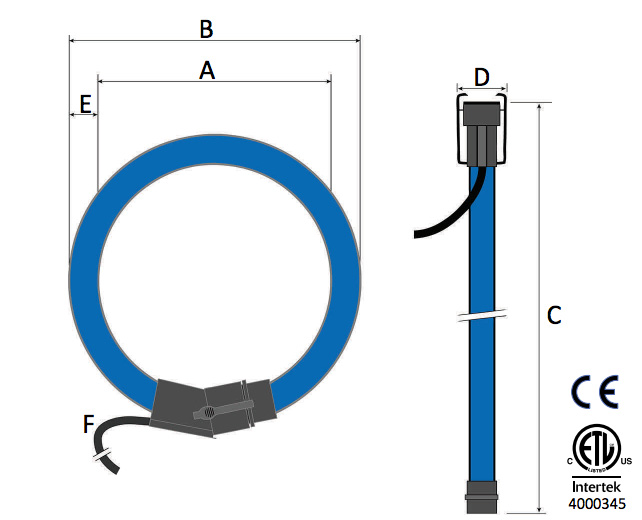

| Dimensions | R16 40 cm (16") |
R24 60 cm (24") |
R36 90 cm (36") |
R72 183cm (72") |
|---|---|---|---|---|
| A - Window Size | 13 cm(5") | 19 cm(7") | 26 cm(10") | 56 cm(22") |
| B - Transformer Coil O.D. | 15 cm(6") | 21 cm(8") | 29 cm(11") | 58 cm(23") |
| C - Transformer Length | 40 cm(16") | 60 cm(24") | 90 cm(36") | 180 cm(72") |
| D - Locking ConnectorO.D. | 3.6 cm(1.4") | |||
| E - Transformer Coil Diameter | 1.5 cm(0.6") | |||
| F - Wire Lead Total Length | 2m(80") | |||
| Four Lengths | 40cm(16"),60cm(24"), 90cm(36"), 183cm(72") |
| Window Size | 13cm(5"),19cm(7"), 26cm(10"), 58cm(23") |
| Output Signal(di/dt) | 131mVAC/1000A @ 60Hz 110mVAC/1000A @ 50Hz |
| Current Range | 5 - 5000AAC |
| Accuracy | < 1% |
All accuraciesspecified at 20°C (±2°C)withRoCoil™centered on conductor.
| Output Signal | 131mV/1000A@ 60Hz 110mV/1000A@ 50Hz |
| Wire Colors | White = (+) positve Brown = (?) negatve Bare wire = shield |
| Phasing | Arrow Points Towards Load |
| Phase Shift | < 1° at 50/60Hz |
| Frequency Range | 40Hzto 5 kHz |
| Useful Current Range | 5 - 5000A AC* |
| Linearity | ± 0.2% |
| Conductor Position Sensitivity | ± 2%maximum |
| In?uence of External Field | ± 1.5%maximum |
| Temperature Sensi?vity | 0.07% per°C |
| Coil Materials | Blue thermoplas?c rubber, ?ame retardantUL 94 V?0 rated |
| Coupling Materials | PolypropyleneUL 94 V?0 rated |
| Shielding | 85% transducer, 100% output lead |
| Working Temp | ?20 °C to +80 °C (?4°to +176 °F) |
| Working Voltage | 1000 Vrmsmaximum |
| Dielectric Strength | 7400 VAC around coil 1000 VAC rated leads |
| Cert?cations | Conforms to UL STD61010?1 Certi?ed to CAN/CSA STDC22.2 No. 61010 |
